LM-CM2-EBT-4

Printer Friendly
Available
LM-CM2-EBT-4
LM-CM2-EBT-4 LM-CM2-EBT-4 LM-CM2-EBT-4 LM-CM2-EBT-4 LM-CM2-EBT-4 LM-CM2-EBT-4

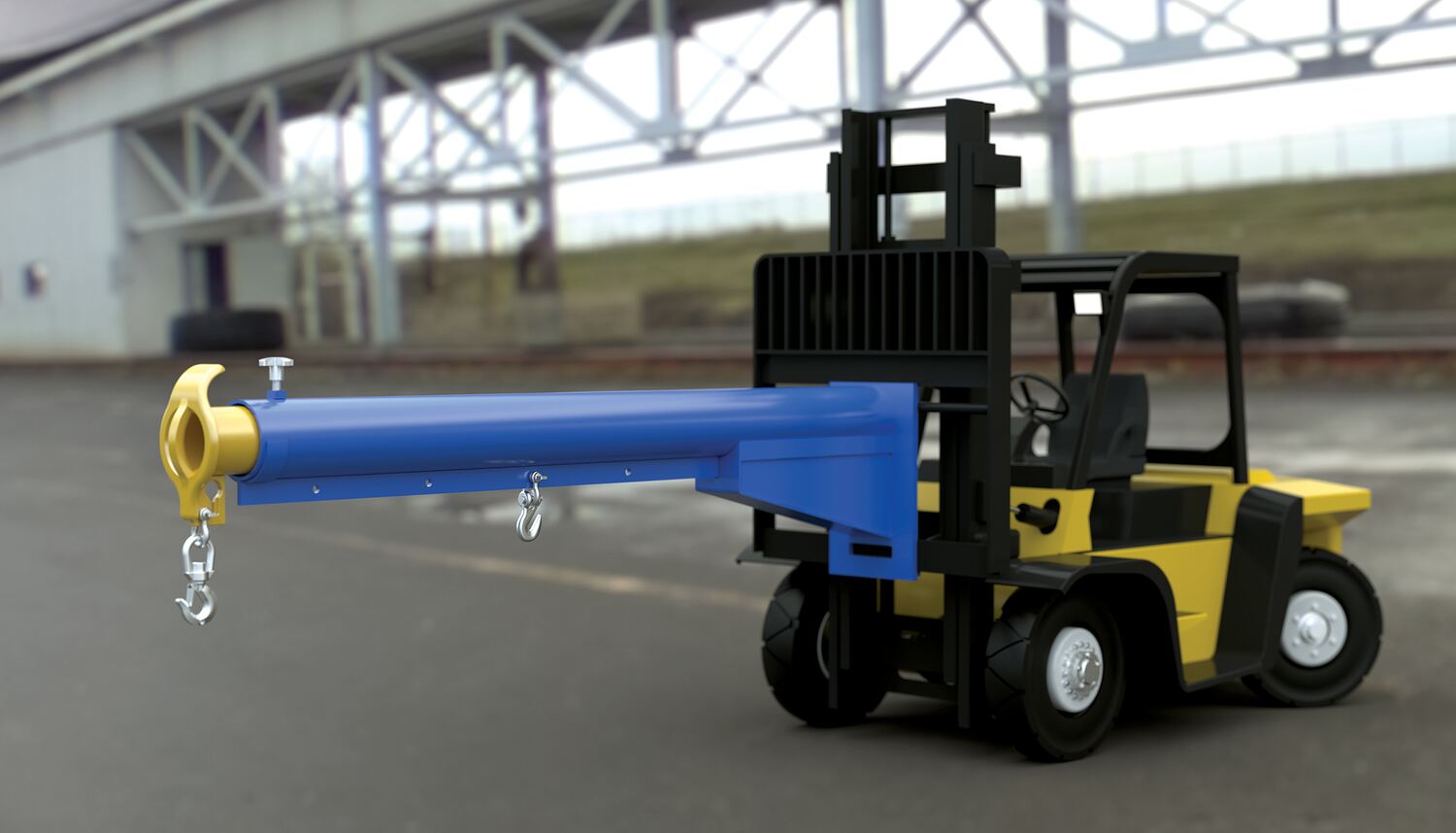

Steel Carriage Mount Lift Master Boom Class II 4,000 Lb. Capacity Blue and Yellow

Unique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

  • Unique design converts fork trucks into overhead lifting cranes
  • Carriage mounted for secure attachment to fork truck
  • Distinct construction provides precision and durability
  • Hooks for simple product attachment
Assembled Wt.(lbs.): 354 Assembled Size: 11.5"W x 145.875"L x 23.625"H

Total Ship Wt.(lbs.): 375 (only 1 package) Package 1 Size: 40"W x 92"D x 18"H Color: Blue

Mounting Style: Carriage Mount Class 2 Uniform Capacity (lb.): 4,000 Capacity at 48 in. Extended (lb.): 3,750
Capacity at 60 in. Extended (lb.): 3,500 Capacity at 72 in. Extended (lb.): 3,250 Capacity at 84 in. Extended (lb.): 3,000
Capacity at 96 in. Extended (lb.): 2,750 Capacity at 108 in. Extended (lb.): 2,500 Capacity at 120 in. Extended (lb.): 2,250
Capacity at 132 in. Extended (lb.): 2,000 Capacity at 144 in. Extended (lb.): 1,750 Retracted Center of Gravity (in.): 34-5/8
Extended Center of Gravity (in.): 52-11/16 Vertical Center of Gravity (in.): 14-13/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: LM-CM2-EBT-4
Available
LM-CM2-EBT-4

Steel Carriage Mount Lift Master Boom Class II 4,000 Lb. Capacity Blue and Yellow

Unique performance, convenience and safety features are built into every lift master boom. Fabricated from structural steel this boom is resilient and durable during constant daily use. The boom is connected and secured to a new or existing fork truck by utilizes the carriage mount feature of the boom. Once secured in place, the fork truck can lift and maneuver a variety of items. Powder-coat finish for baked in added toughness.

  • Unique design converts fork trucks into overhead lifting cranes
  • Carriage mounted for secure attachment to fork truck
  • Distinct construction provides precision and durability
  • Hooks for simple product attachment
Dimensions: 11.5"W x 145.875"L x 23.625"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 375 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Mounting Style: Carriage Mount Class 2 Uniform Capacity (lb.): 4,000 Capacity at 48 in. Extended (lb.): 3,750
Capacity at 60 in. Extended (lb.): 3,500 Capacity at 72 in. Extended (lb.): 3,250 Capacity at 84 in. Extended (lb.): 3,000
Capacity at 96 in. Extended (lb.): 2,750 Capacity at 108 in. Extended (lb.): 2,500 Capacity at 120 in. Extended (lb.): 2,250
Capacity at 132 in. Extended (lb.): 2,000 Capacity at 144 in. Extended (lb.): 1,750 Retracted Center of Gravity (in.): 34-5/8
Extended Center of Gravity (in.): 52-11/16 Vertical Center of Gravity (in.): 14-13/16
