FEATURED Horizontal Semi-Automatic Drum Tong

model: DTH-1000

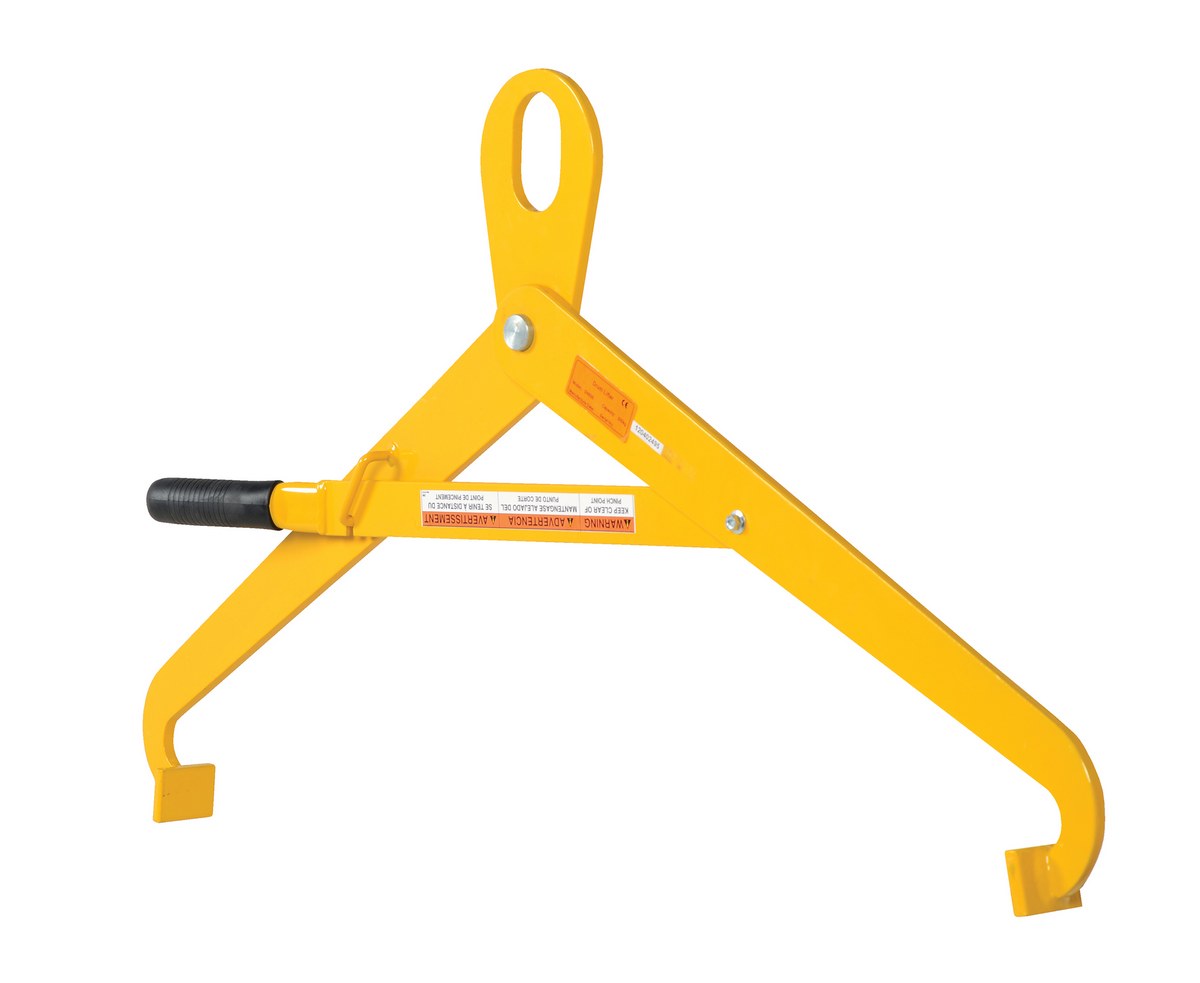

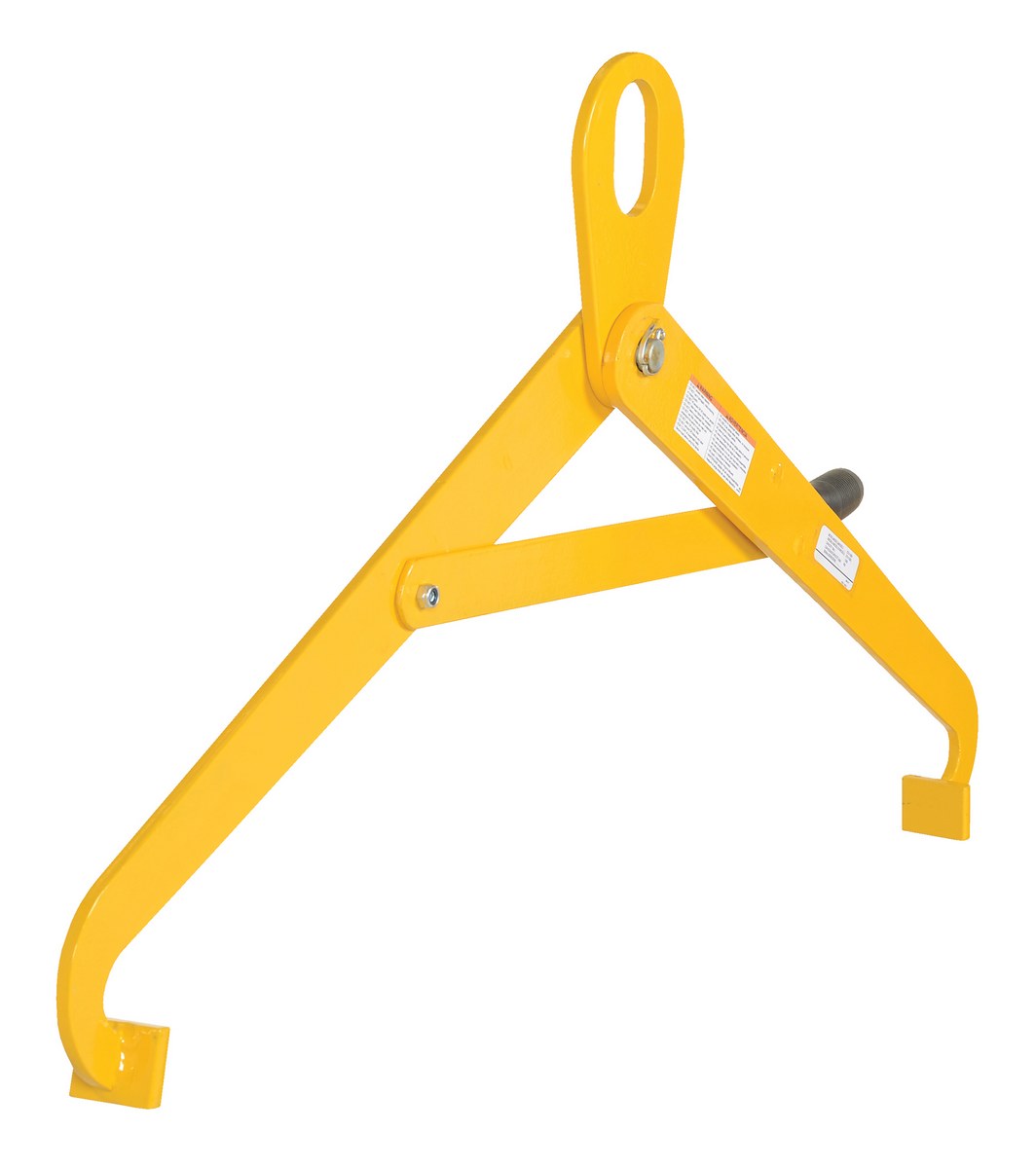

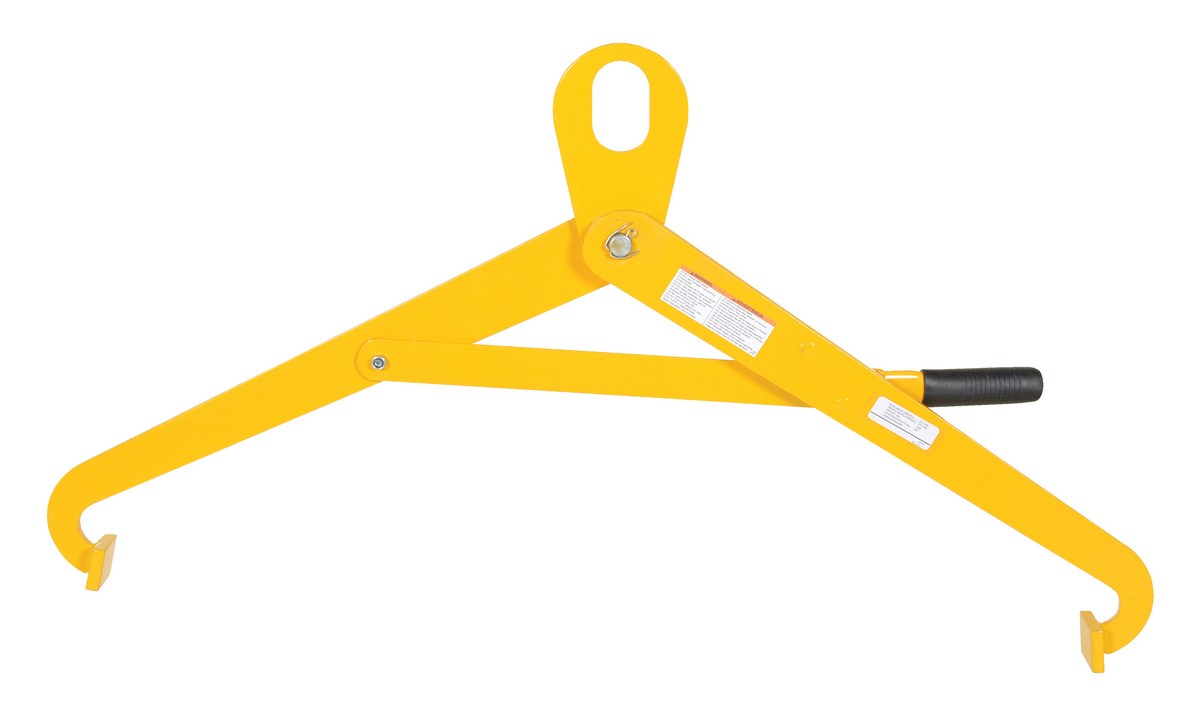

Horizontal Semi-Automatic Drum Tong
SERIES: DTH   1Products
Quick Ship

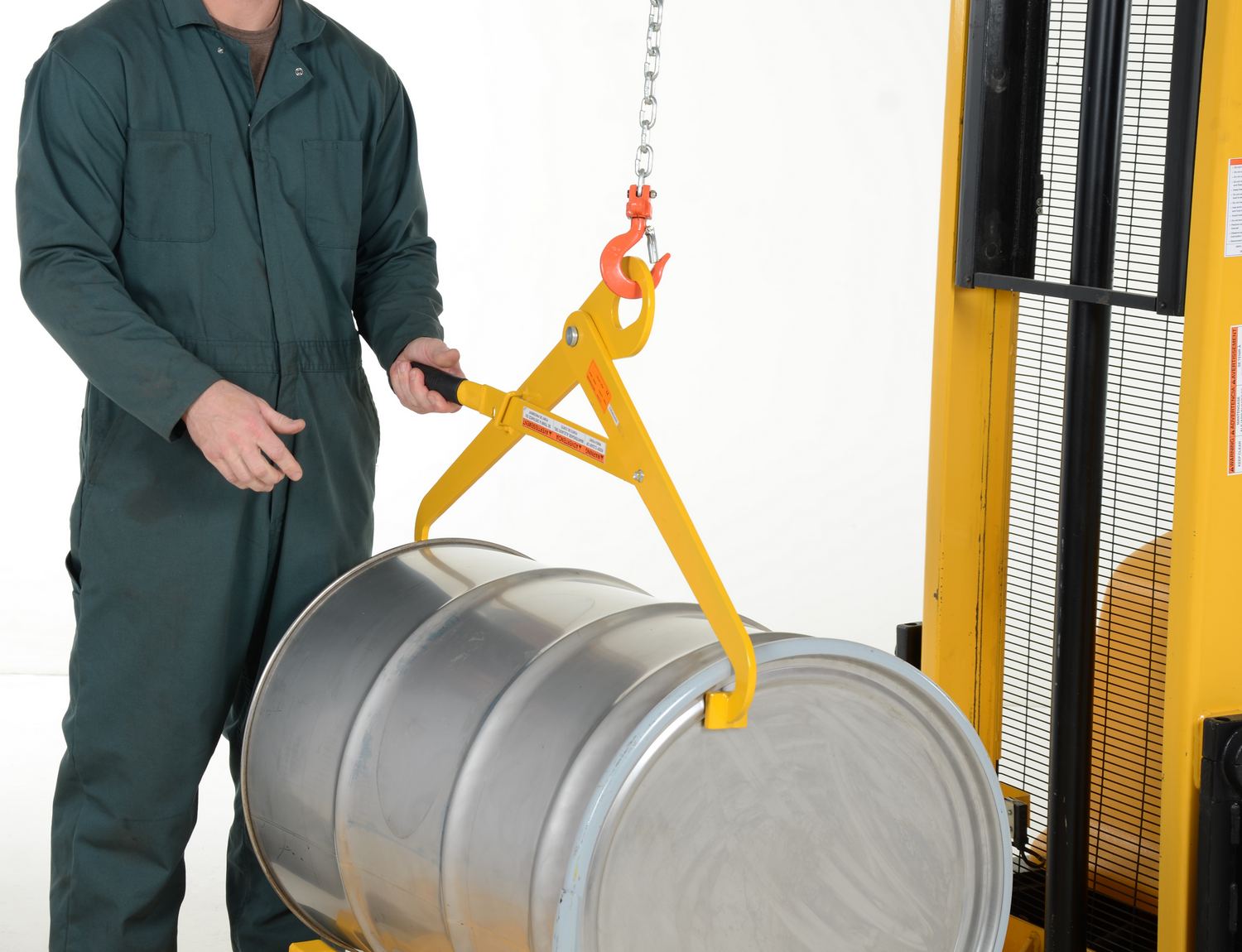

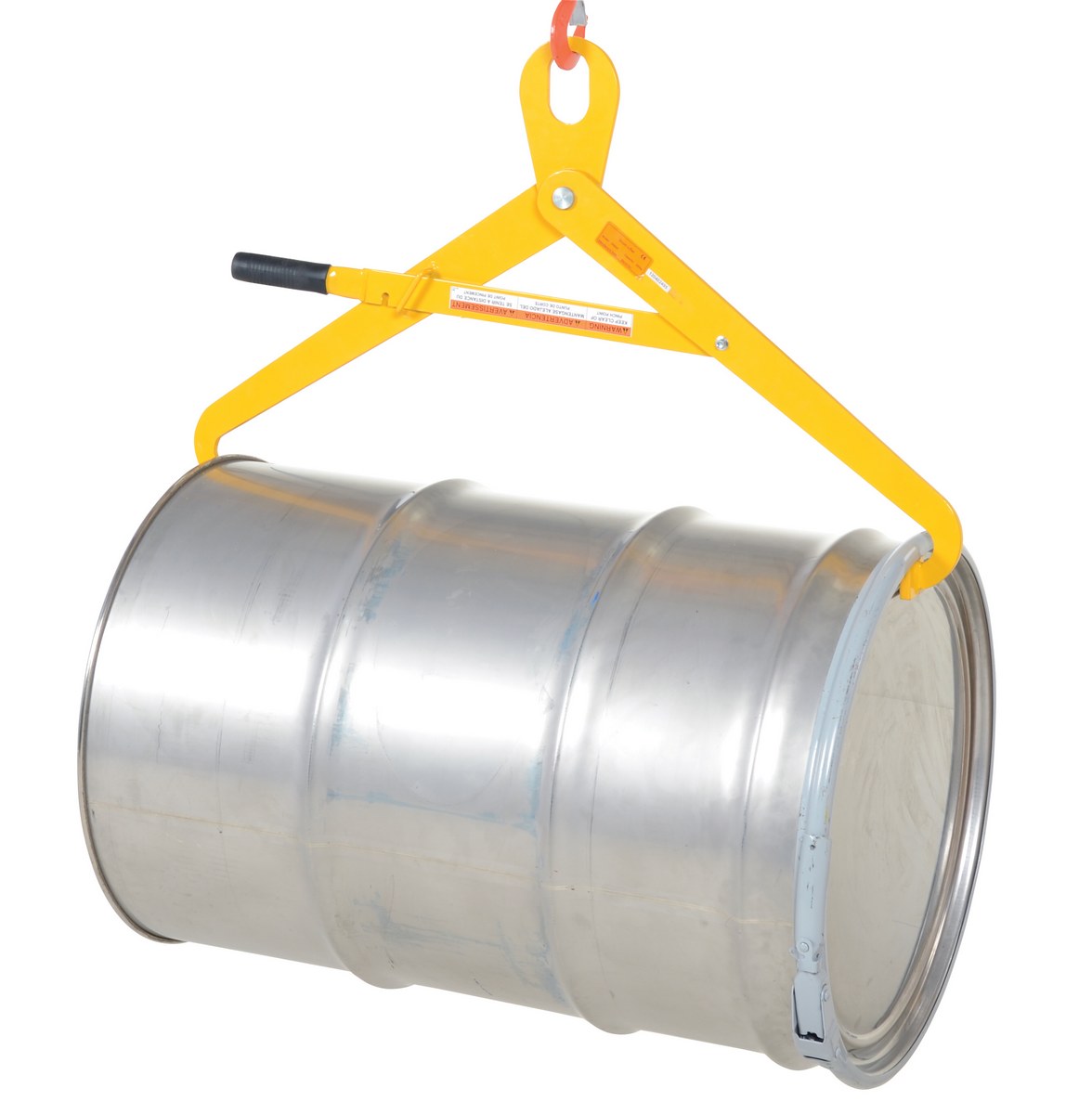

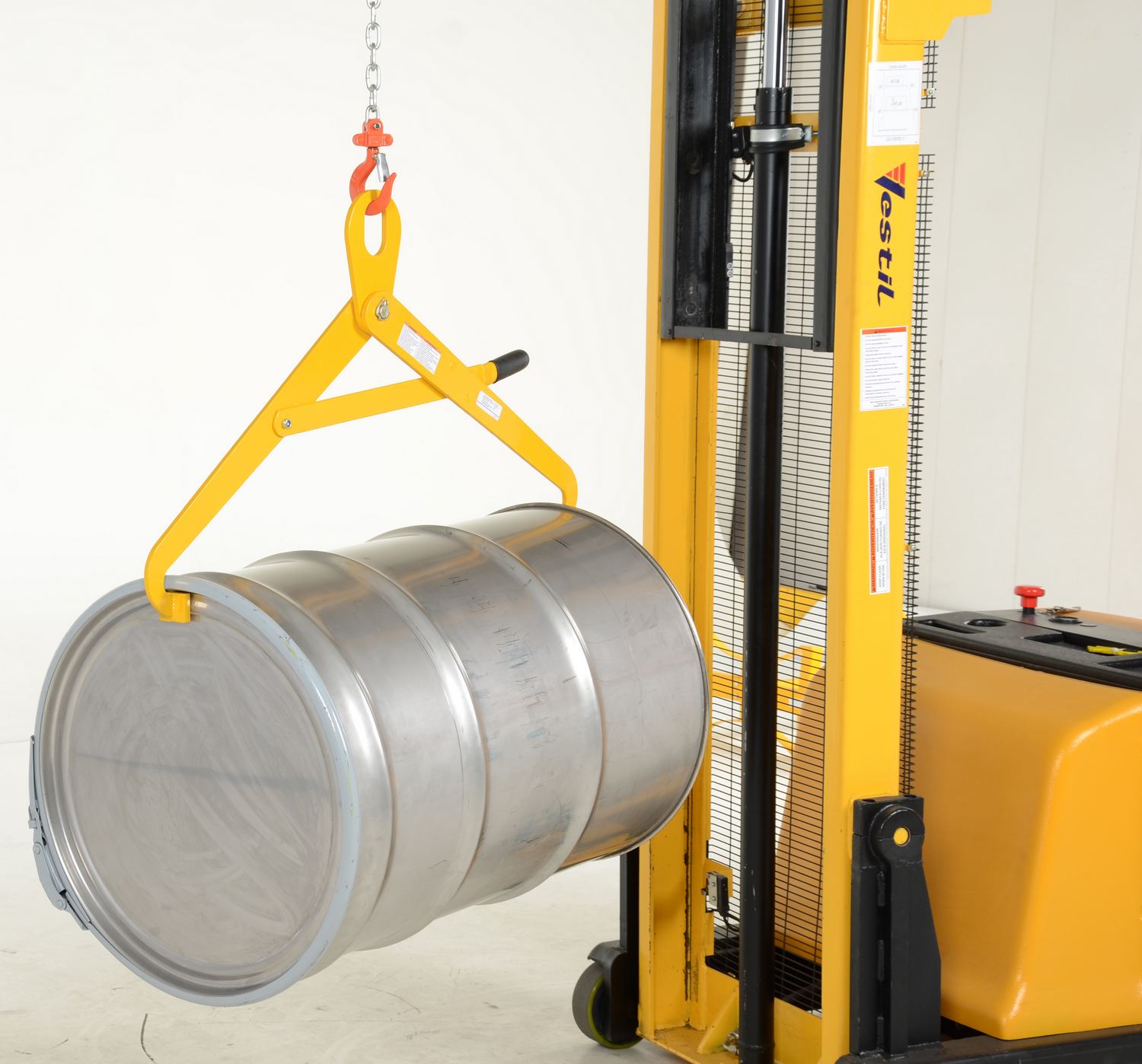

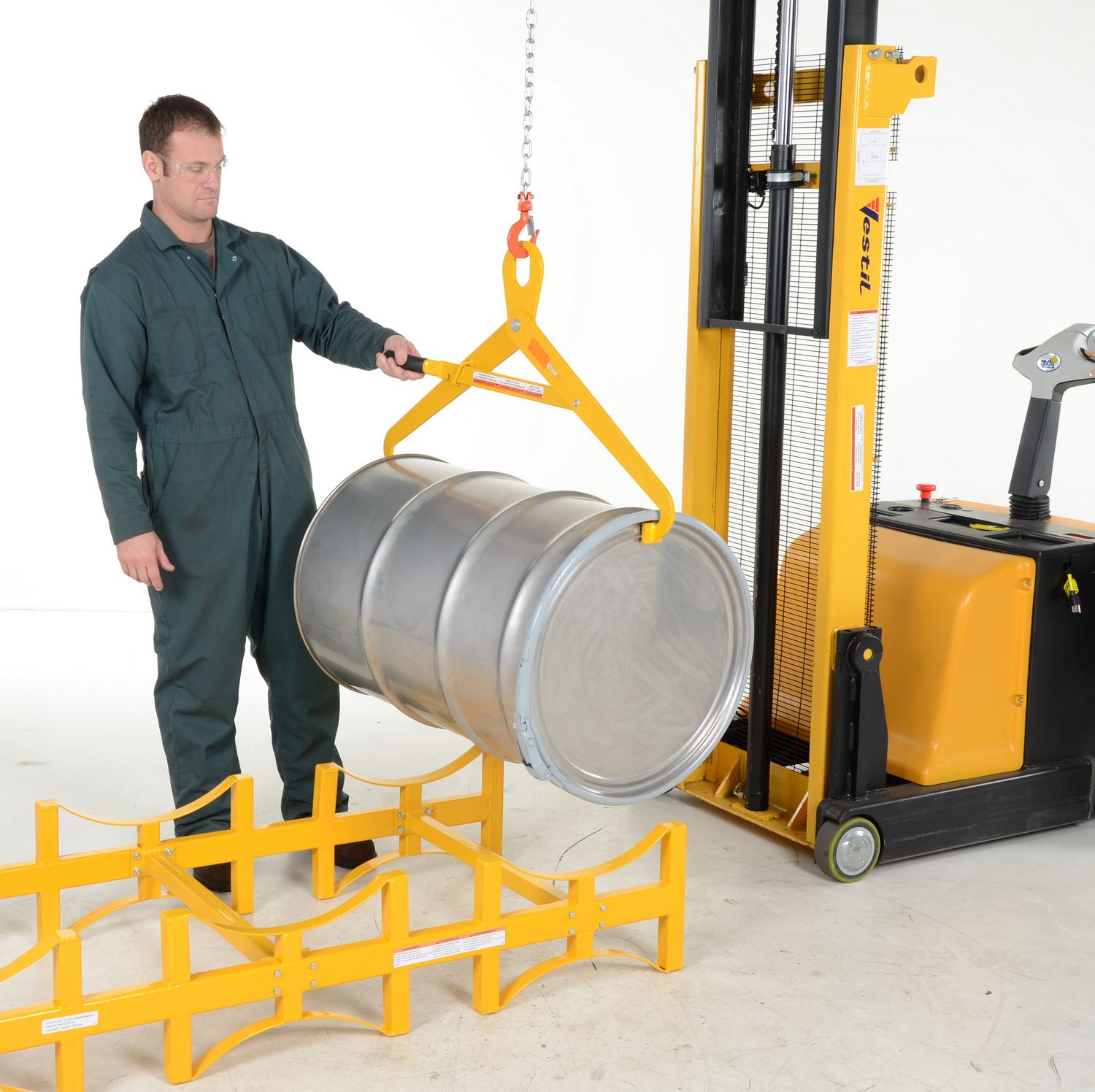

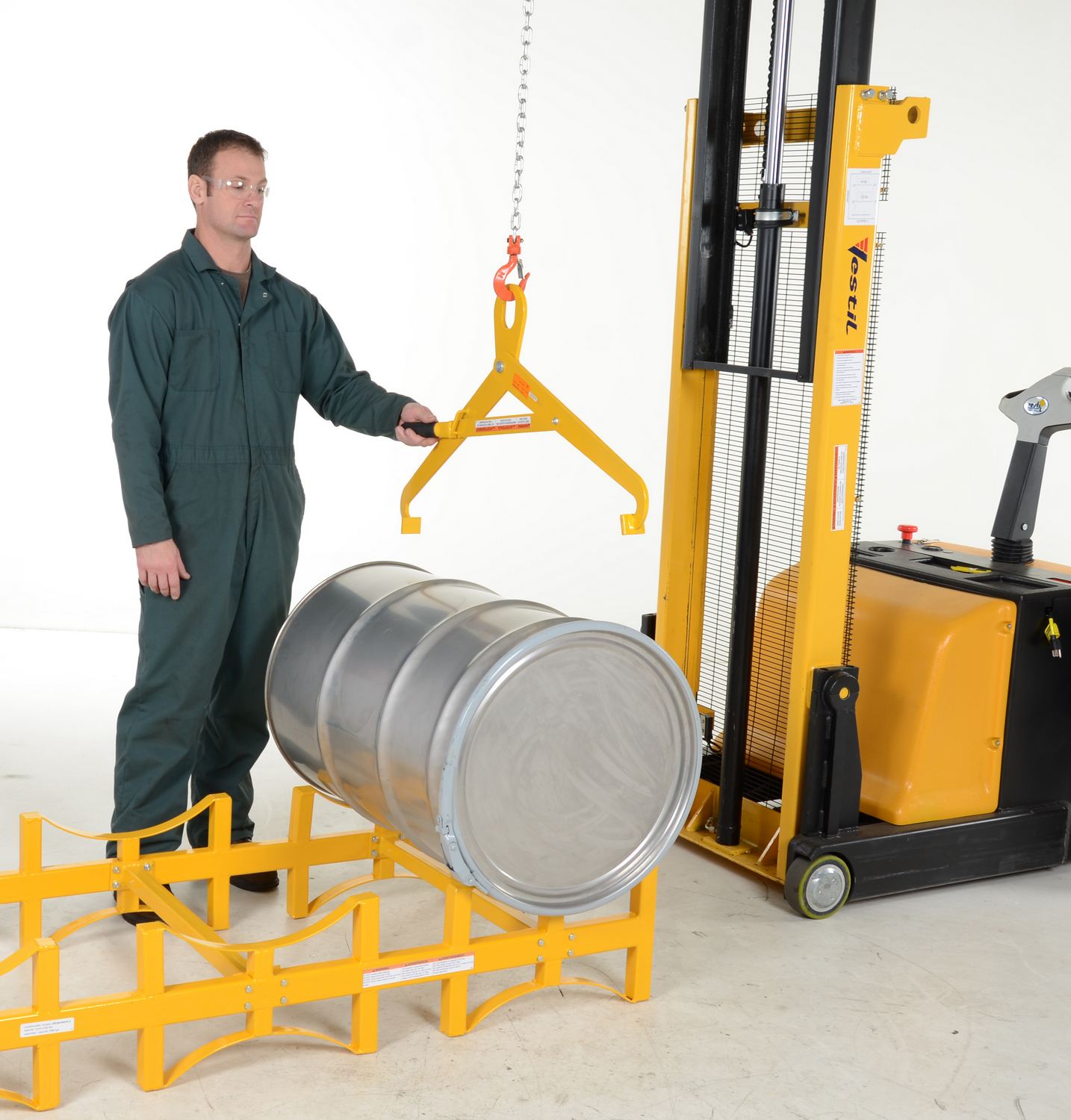

Made to lift 55 gallon steel or fiber drums with an overhead hoist. Suitable for open top or tight head steel drum which have a ring. To operate set locking lever in locked open position. When central over the horizontal drum release lever to allow hooks to fall and locate under both rims. Hook automatically engage as it is lifted and disengage as drum is set down.

  • Tong is made to lift drums with an overhead hoist with ease
  • Ideal for open or closed head steel, fiber drums with ring
  • Release lever allows hooks to fall and locate under both rims
  • Hook engages as it's lifted and disengages as drum is set down
Horizontal Semi-Automatic Drum Tong

model: DTH-1000

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Owner's Manuals

0
No owner's manuals for this product family.

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

1

Testing Certificates

1

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.




Horizontal Semi-Automatic Drum...




Made to lift 55 gallon steel or fiber drums with an overhead hoist. Suitable for open top or tight head steel drum which have a ring. To operate set locking lever in locked open position. When central over the horizontal drum release lever to allow hooks to fall and locate under both rims. Hook automatically engage as it is lifted and disengage as drum is set down.

  • Tong is made to lift drums with an overhead hoist with ease
  • Ideal for open or closed head steel, fiber drums with ring
  • Release lever allows hooks to fall and locate under both rims
  • Hook engages as it's lifted and disengages as drum is set down


Model # Description Attributes Net Wt.
(lbs)
DTH-1000 DTH-1000Steel Horizontal Semi Automatic Drum Tong 3-1/2 In. x 41-1/4 In. x 21-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Clearance Between Legs (in.): 35-7/8
18
