Adjustable Spreader Beams

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery
FEATURED Adjustable Spreader Beams

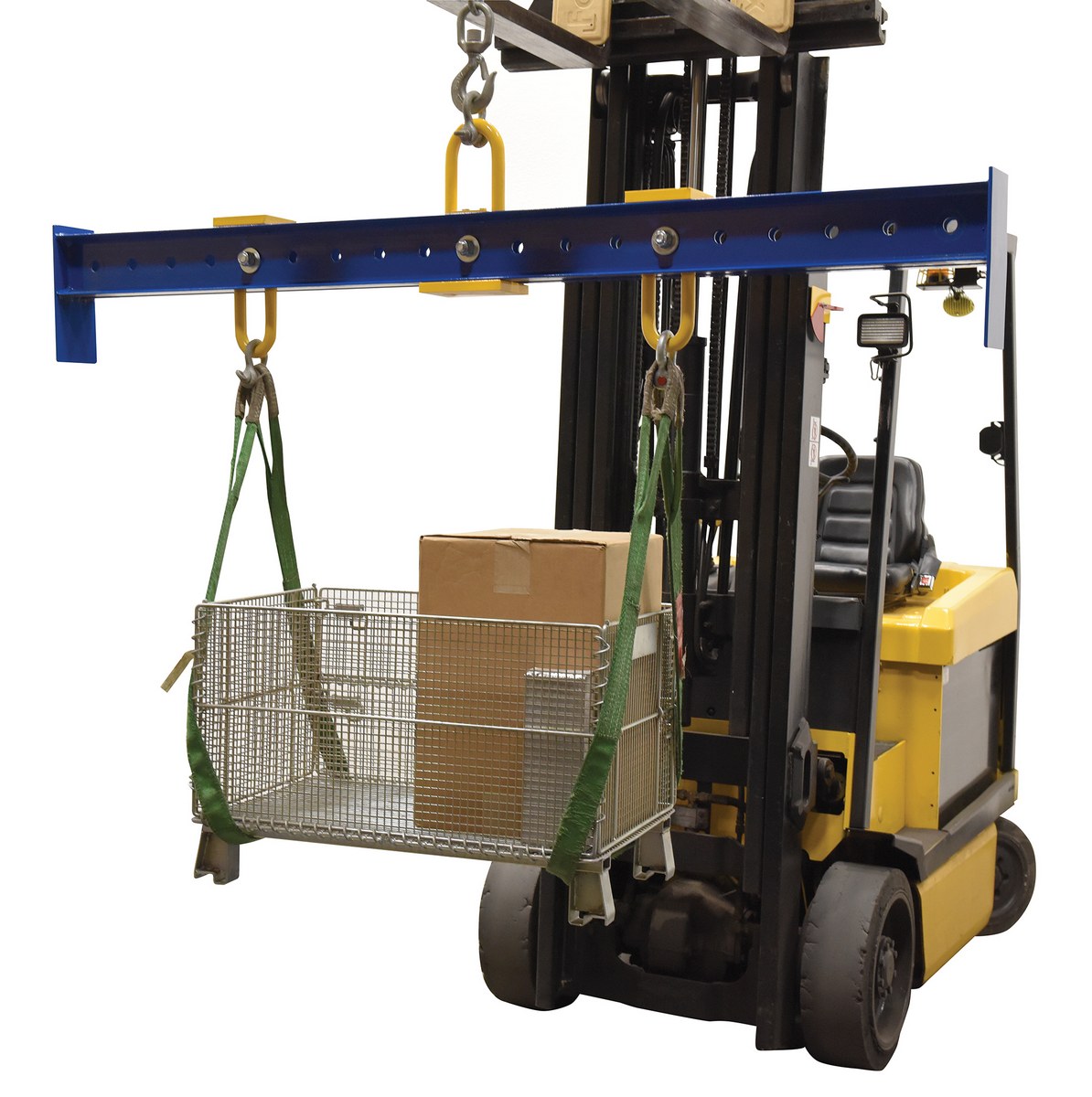

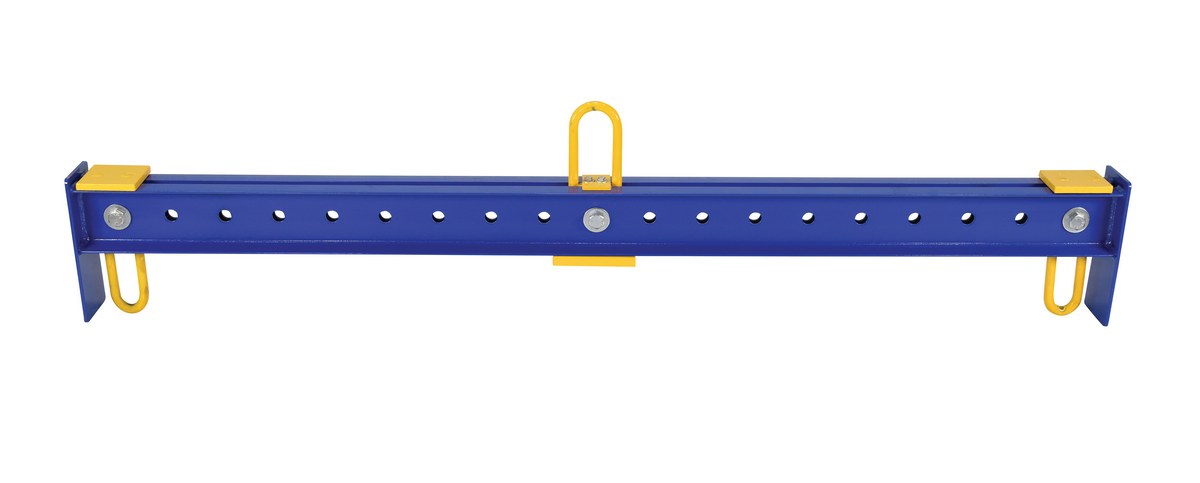

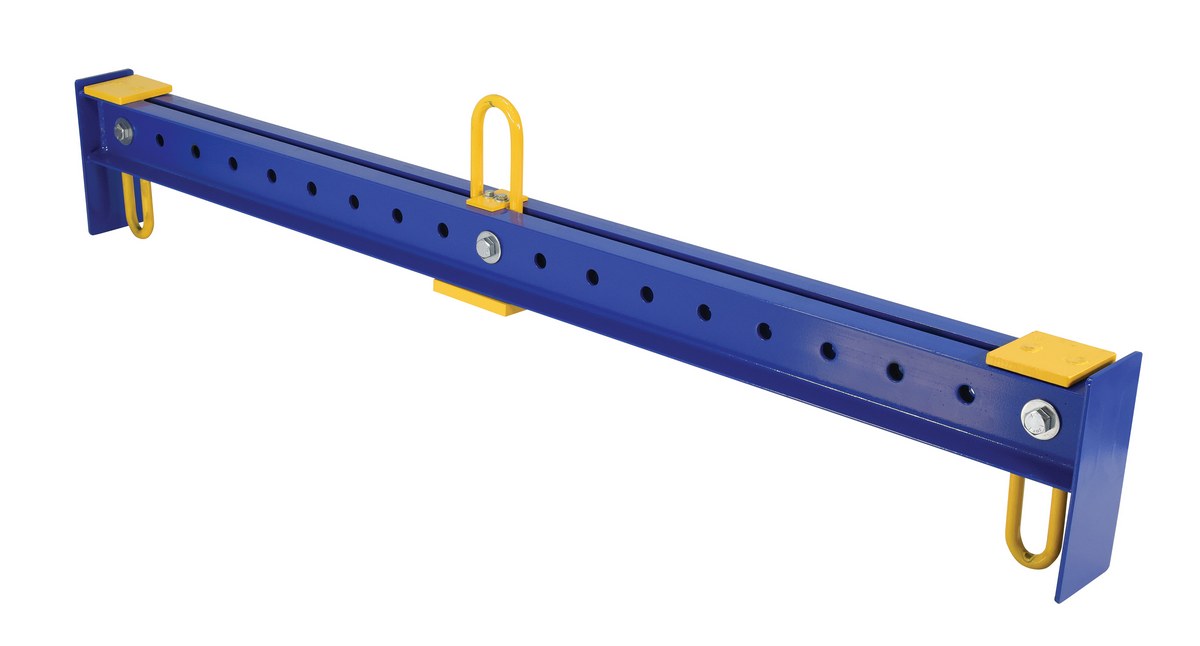

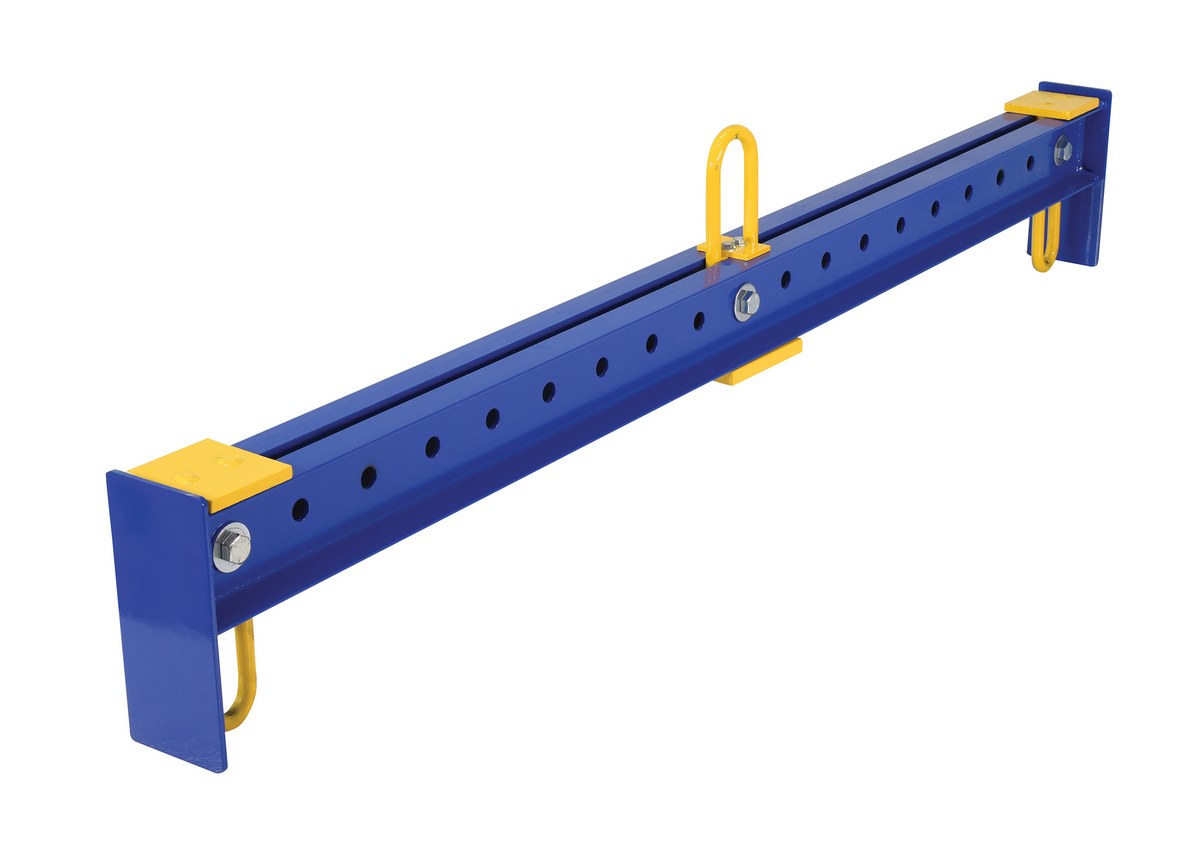

model: SBM-25

SBM-25_A.jpg SBM-25_B.jpg SBM-25_C.jpg SBM-25_D.jpg More Images +
Adjustable Spreader Beams
SERIES: SBM   13Products 8Options
Powder Coat Quick Ship Custom Fabrication

Adjustable Lifting Spreader Beams for Balanced and Uneven Load Handling

Adjustable Spreader Beams provide a versatile lifting solution for safely handling loads with varying dimensions, weight distributions, and lifting points. Designed to keep loads level during lifting operations, these heavy-duty spreader bars are ideal for manufacturing facilities, steel fabrication shops, construction sites, warehouses, and maintenance operations. Adjustable lower bails allow operators to quickly adapt to different load configurations, improving lifting flexibility while reducing the need for multiple dedicated lifting devices.

Key Features & Benefits

Constructed from rugged structural steel with a durable baked-in powder-coated finish, these lifting beams are built for demanding industrial environments. Adjustable bails slide between heavy-duty C-channel sections and can be repositioned in 4-inch increments to accommodate a wide range of load sizes and centers of gravity. Capacities range from light-duty applications to heavy industrial lifts, making the family suitable for everything from machinery components to large fabricated assemblies. Models meet ASME B30.20 standards and include upper and lower lifting bails for secure rigging attachment and enhanced load stability.

Applications

These adjustable spreader bars are ideal for overhead crane systems, gantry cranes, hoists, and other lifting equipment where balanced load control is critical. They help reduce load shifting, minimize rigging complexity, and improve safety when lifting long, oversized, or unevenly distributed loads. Specialty models designed for sling applications further enhance flexibility when handling unique lifting challenges.

Configurations & Options

Available in multiple capacities, spread ranges, and beam lengths, the Adjustable Spreader Beam family offers solutions for a broad range of lifting requirements. Optional replacement upper and lower bails are available to support maintenance programs and maximize long-term equipment value. Their adaptable design helps distributors and end users improve lifting efficiency, workplace safety, and operational productivity.

Adjustable Spreader Beams

model: SBM-25

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
SBM-25
SBM-40
SBM-80
SBM-BFB-100-10
SBM-BFB-100-6
SM-LB-25
SM-LB-40
SM-LB-80
SM-LB-BFB-100
SM-UB-25
SM-UB-40
SM-UB-80
SM-UB-BFB-100
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

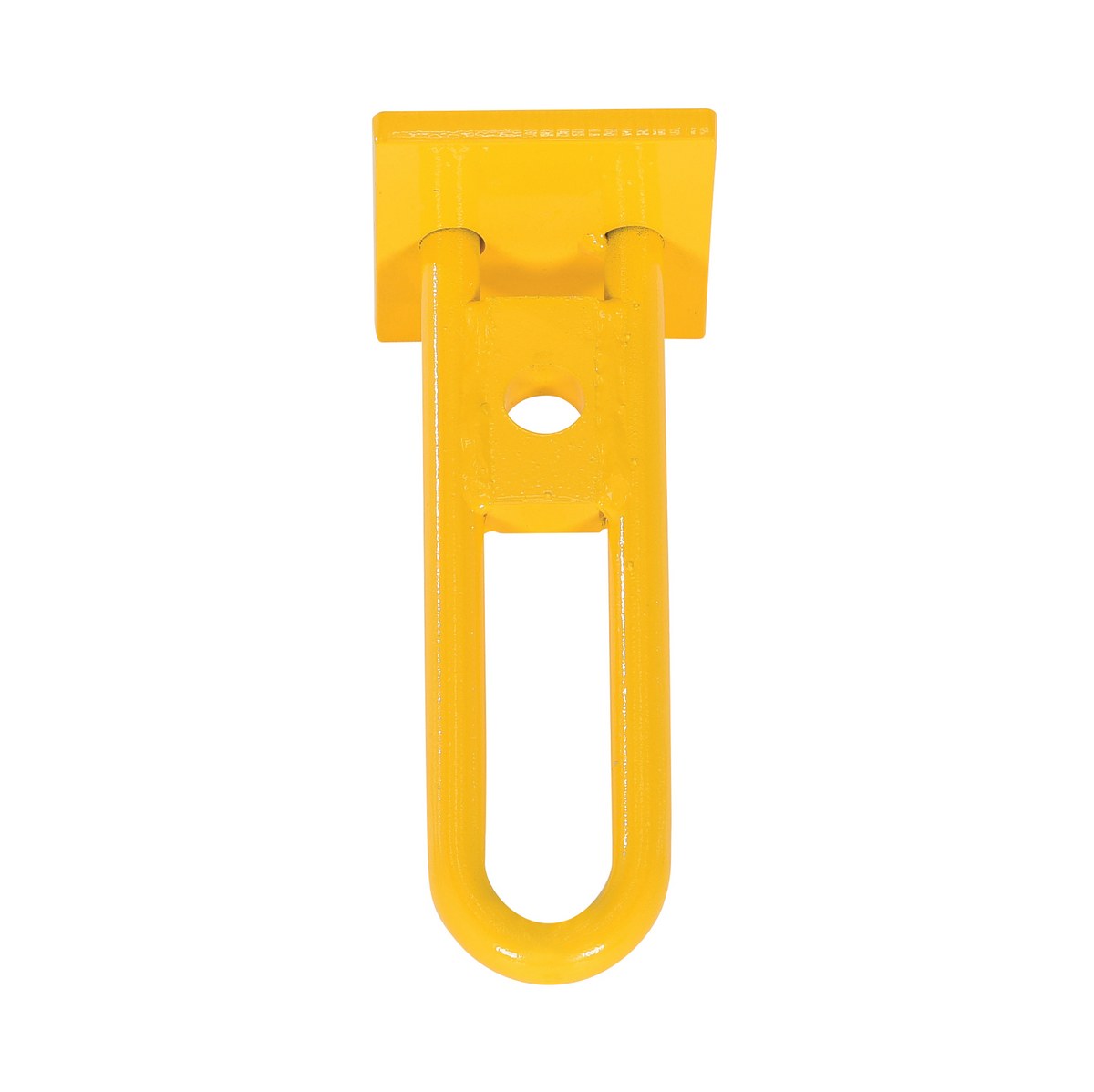

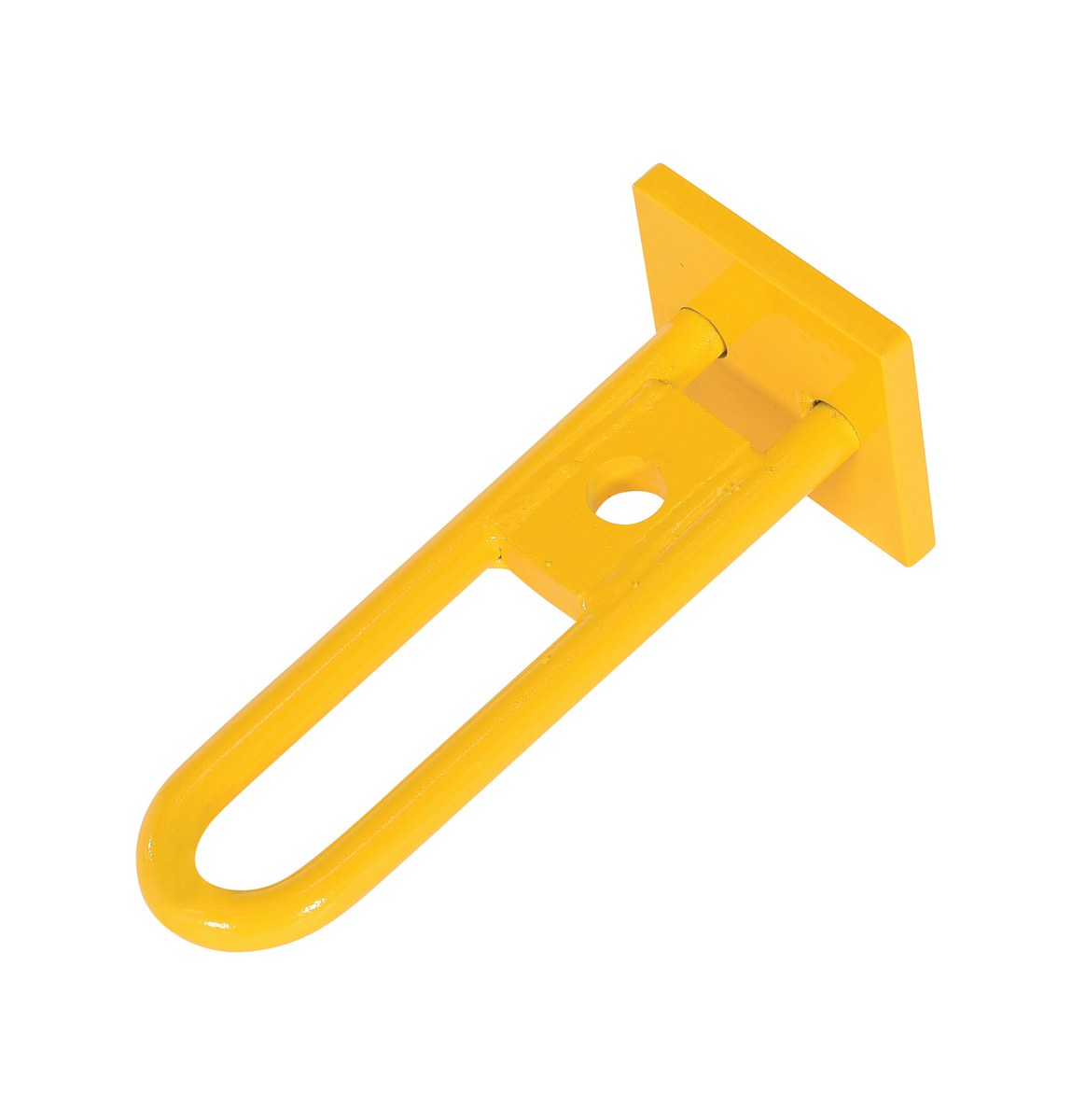

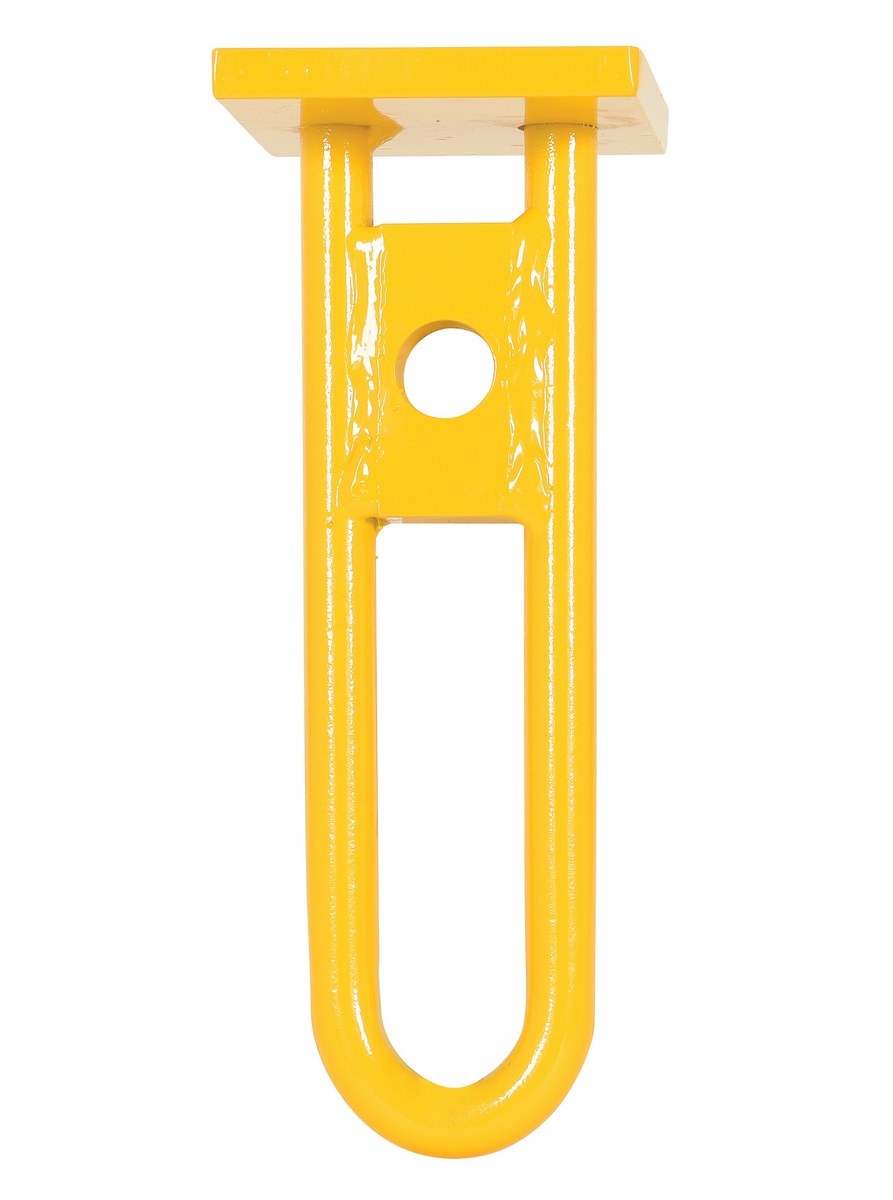

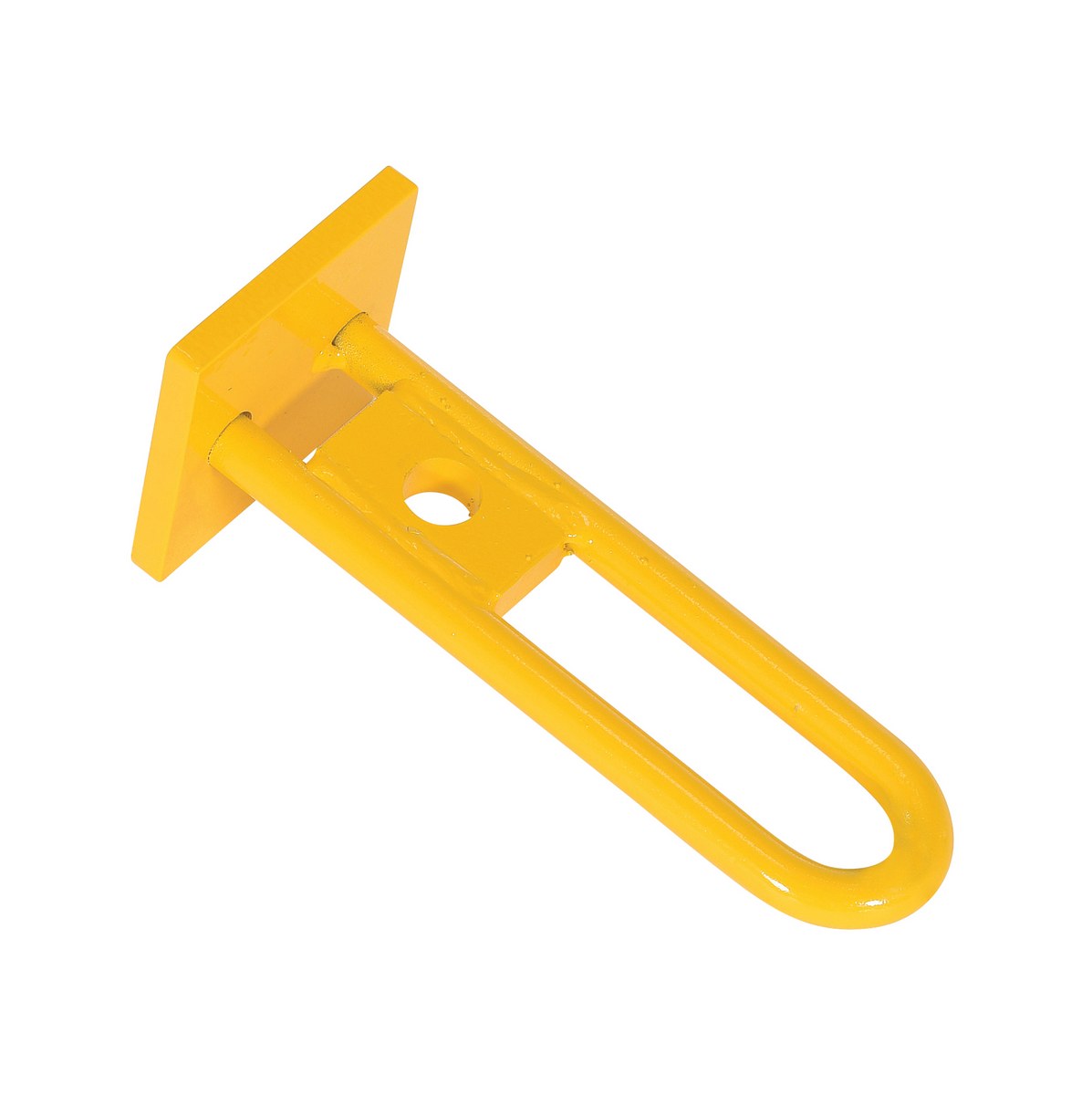

SM-LB-25 SM-LB-25 Steel Lower Bail 4-1/4 In. x 4-1/2 In. x 11 In. For Adjustab… 90 Days Limited Warranty 10

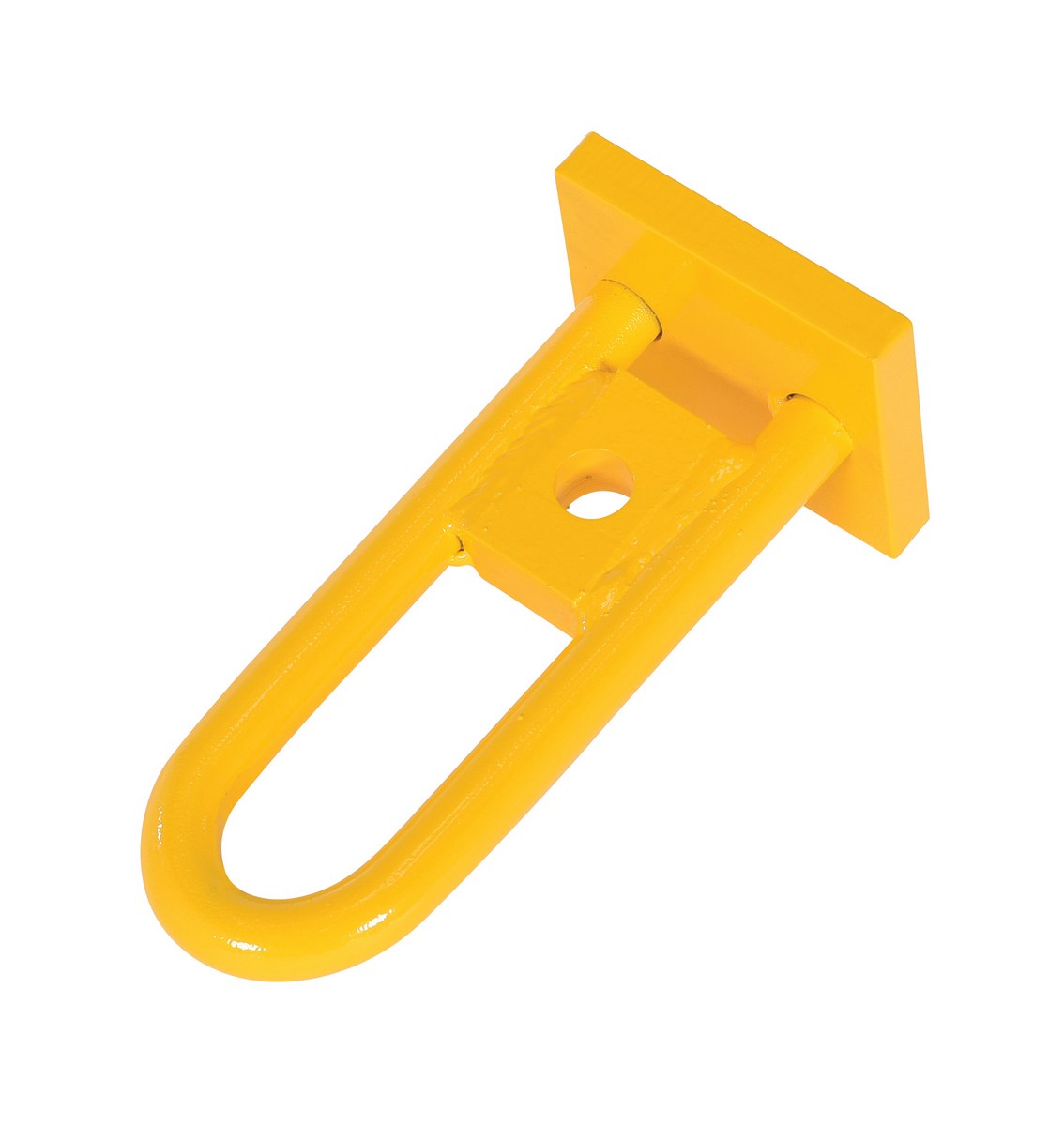

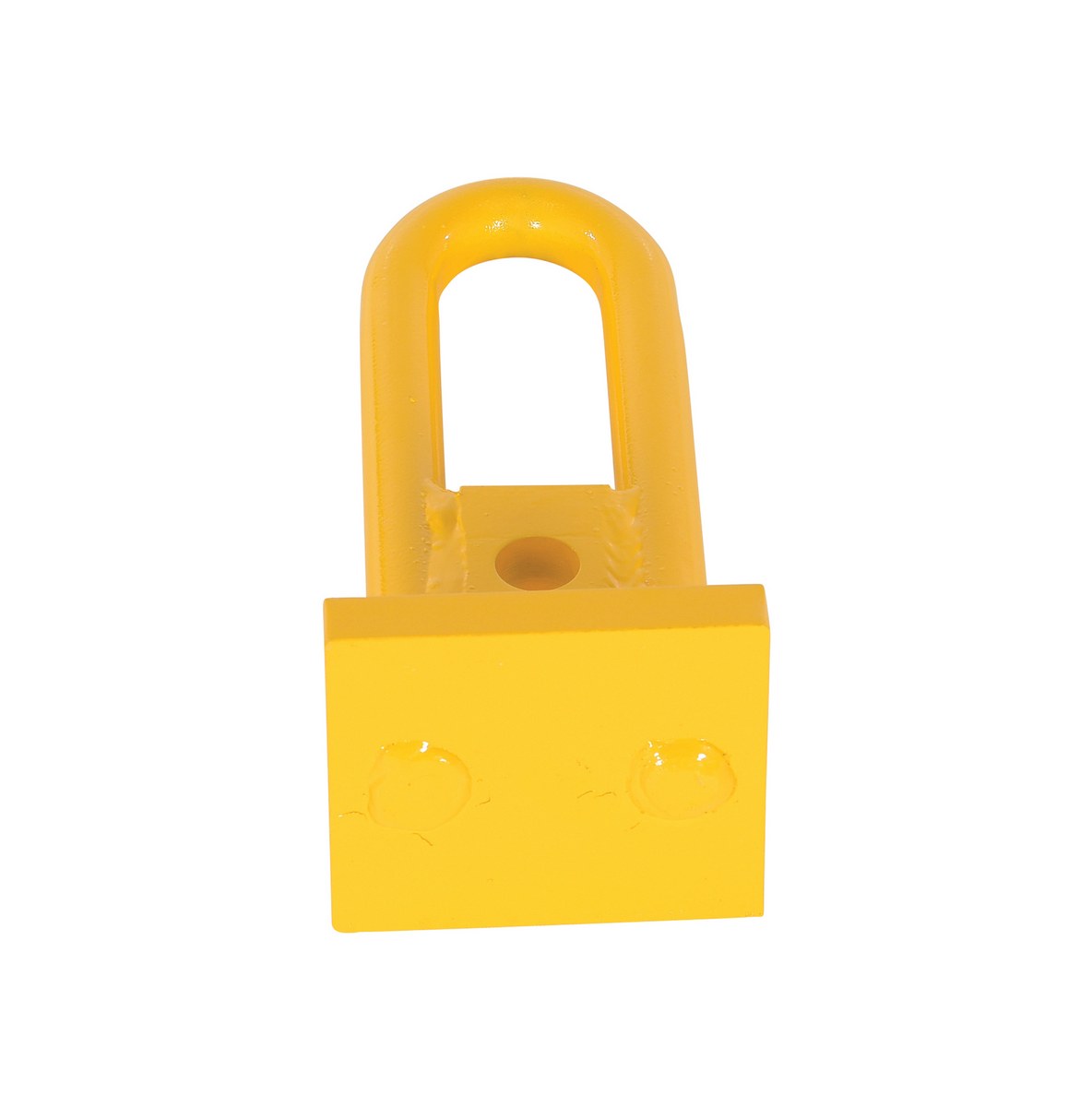

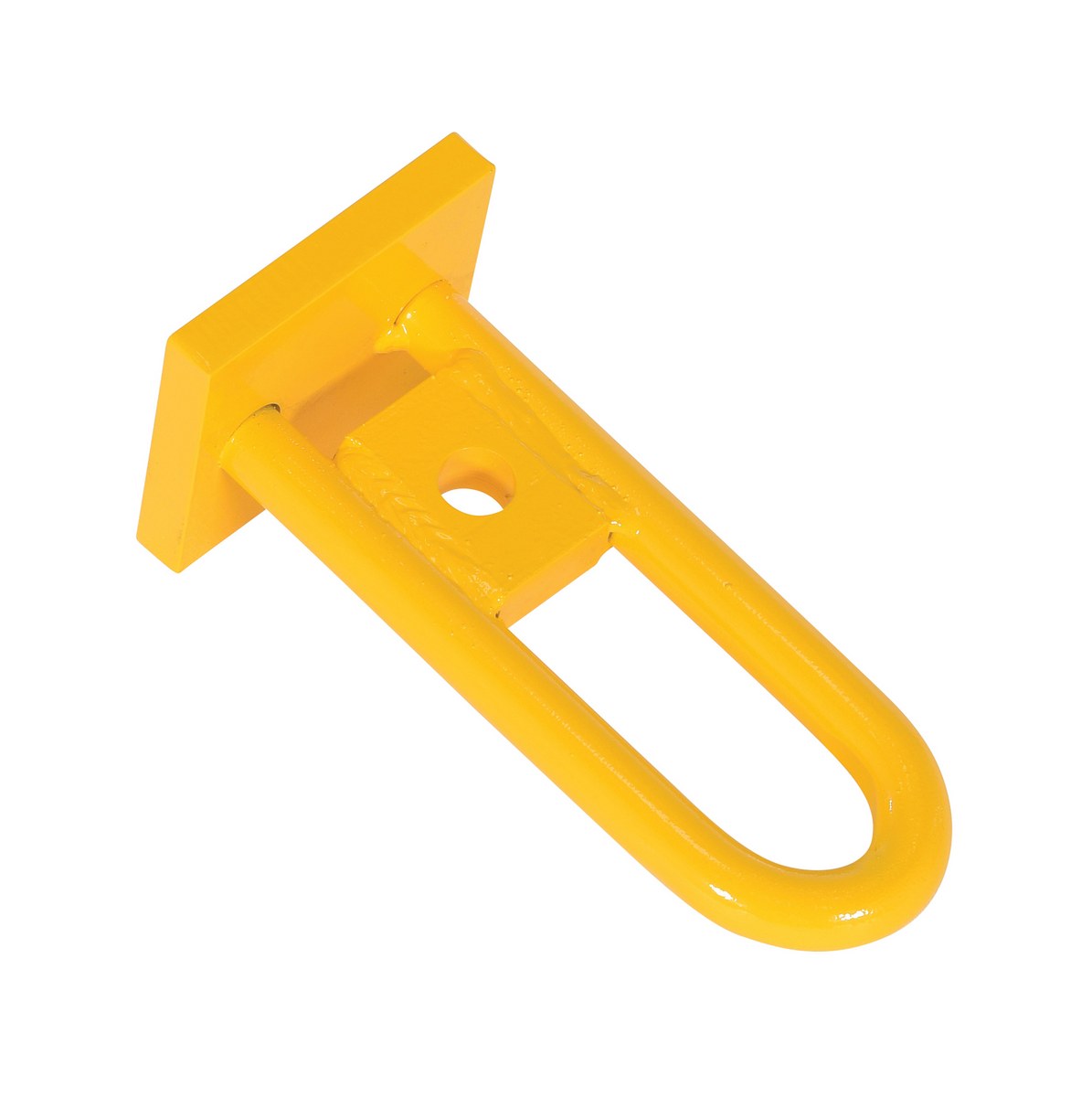

SM-LB-40 SM-LB-40 Steel Lower Bail 4-1/2 In. x 5 In. x 11 In. For Adjustable S… 90 Days Limited Warranty 16

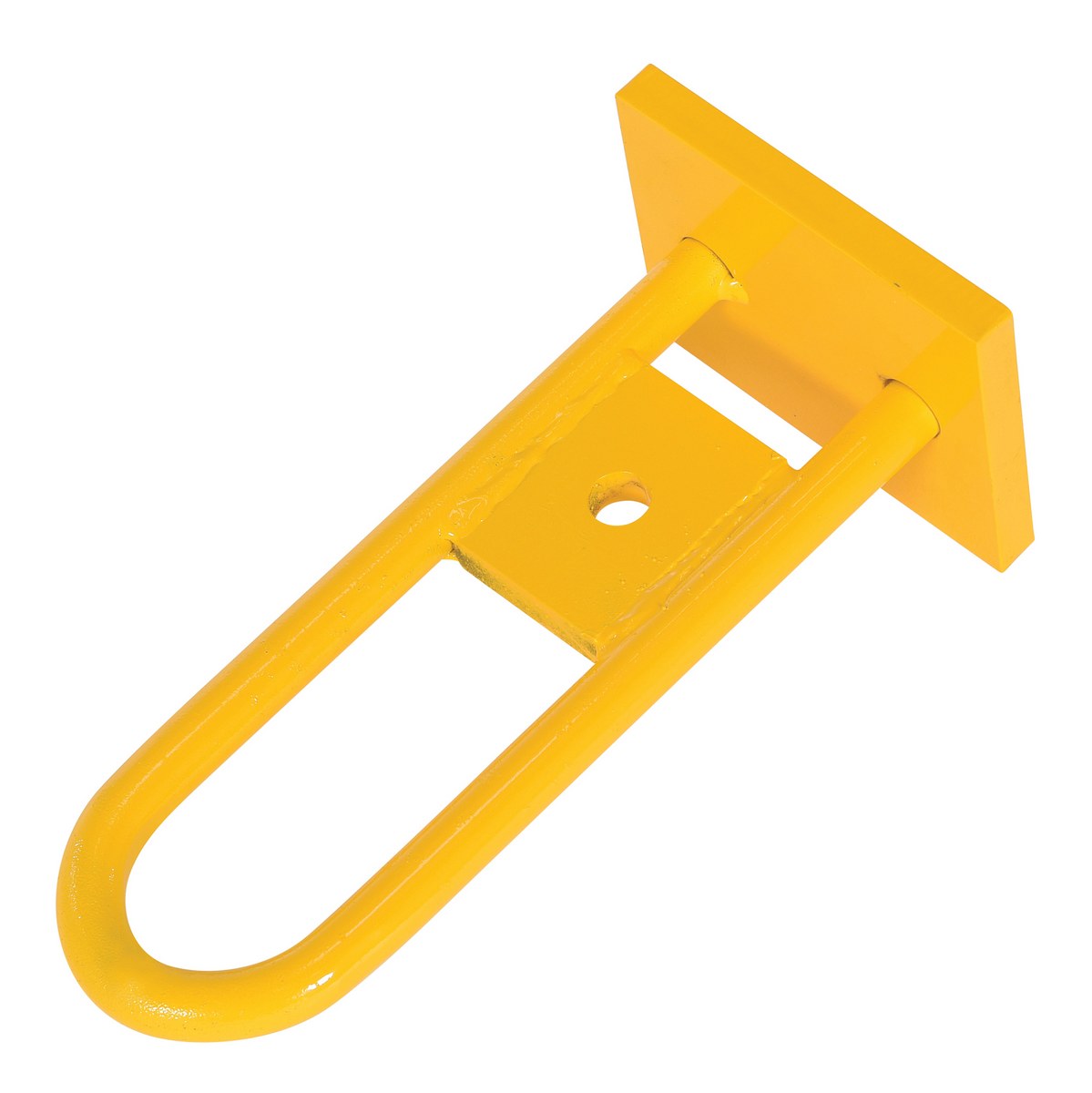

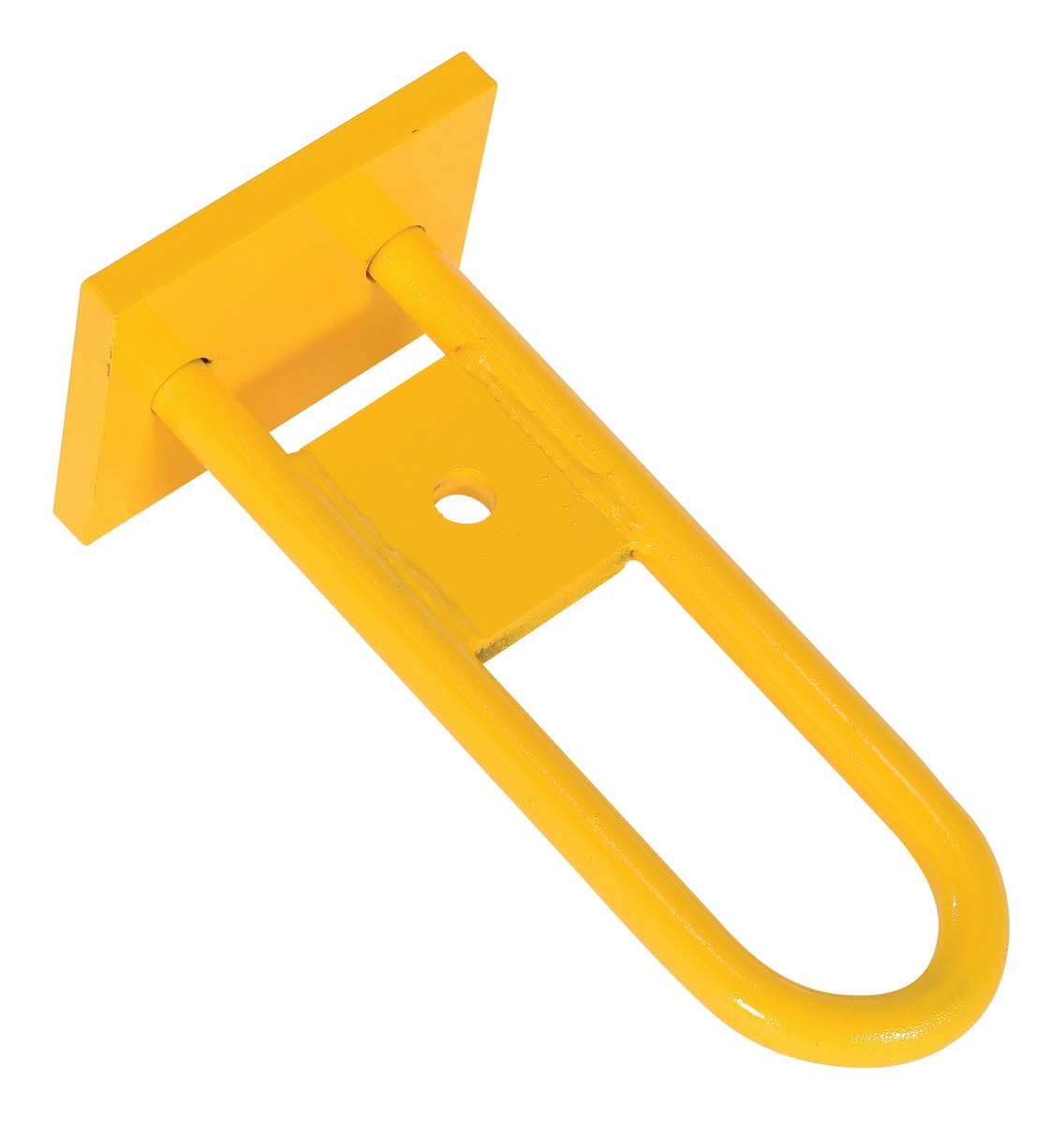

SM-LB-80 SM-LB-80 Steel Lower Bail 6 In. x 7 In. x 15-1/4 In. For Adjustable S… 90 Days Limited Warranty 32

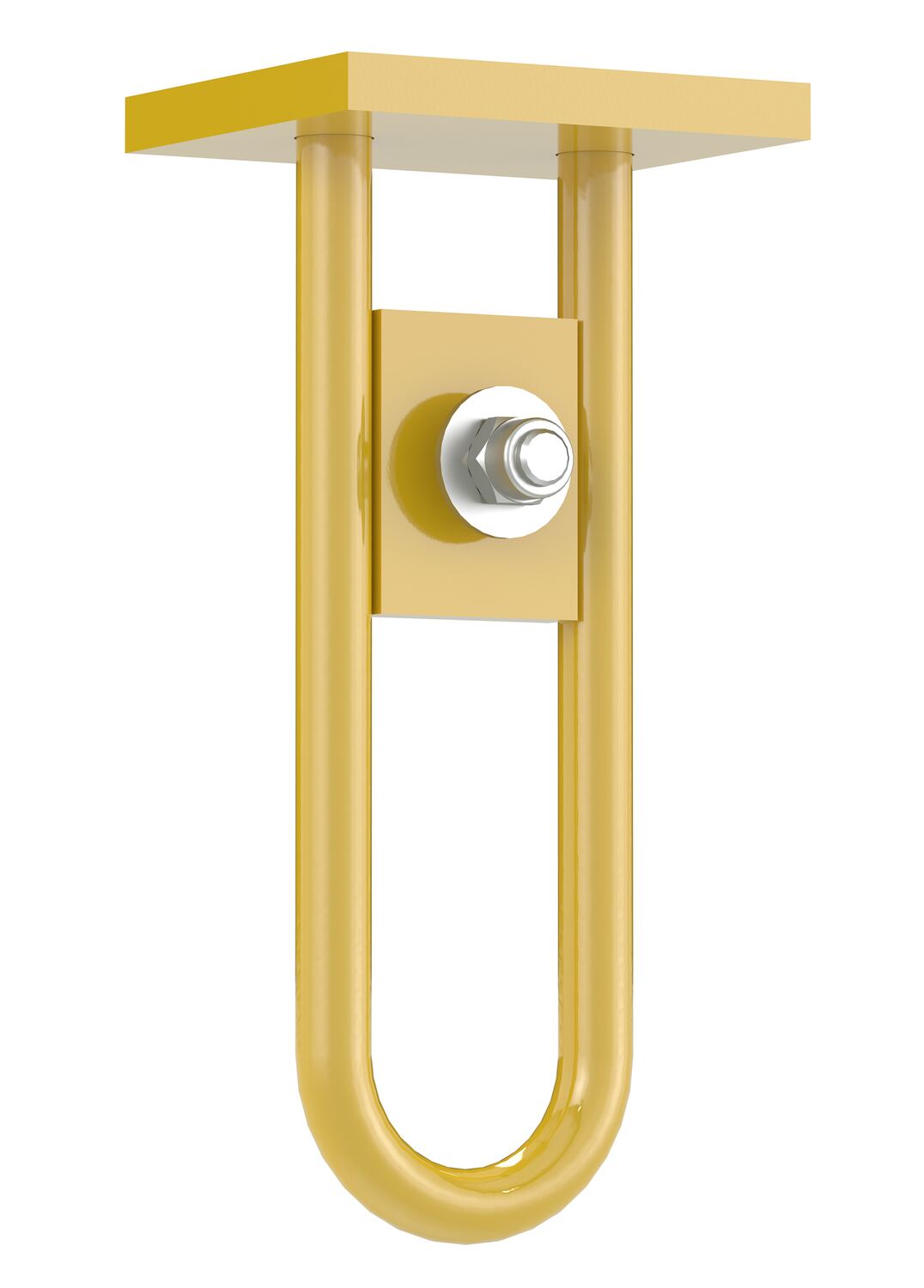

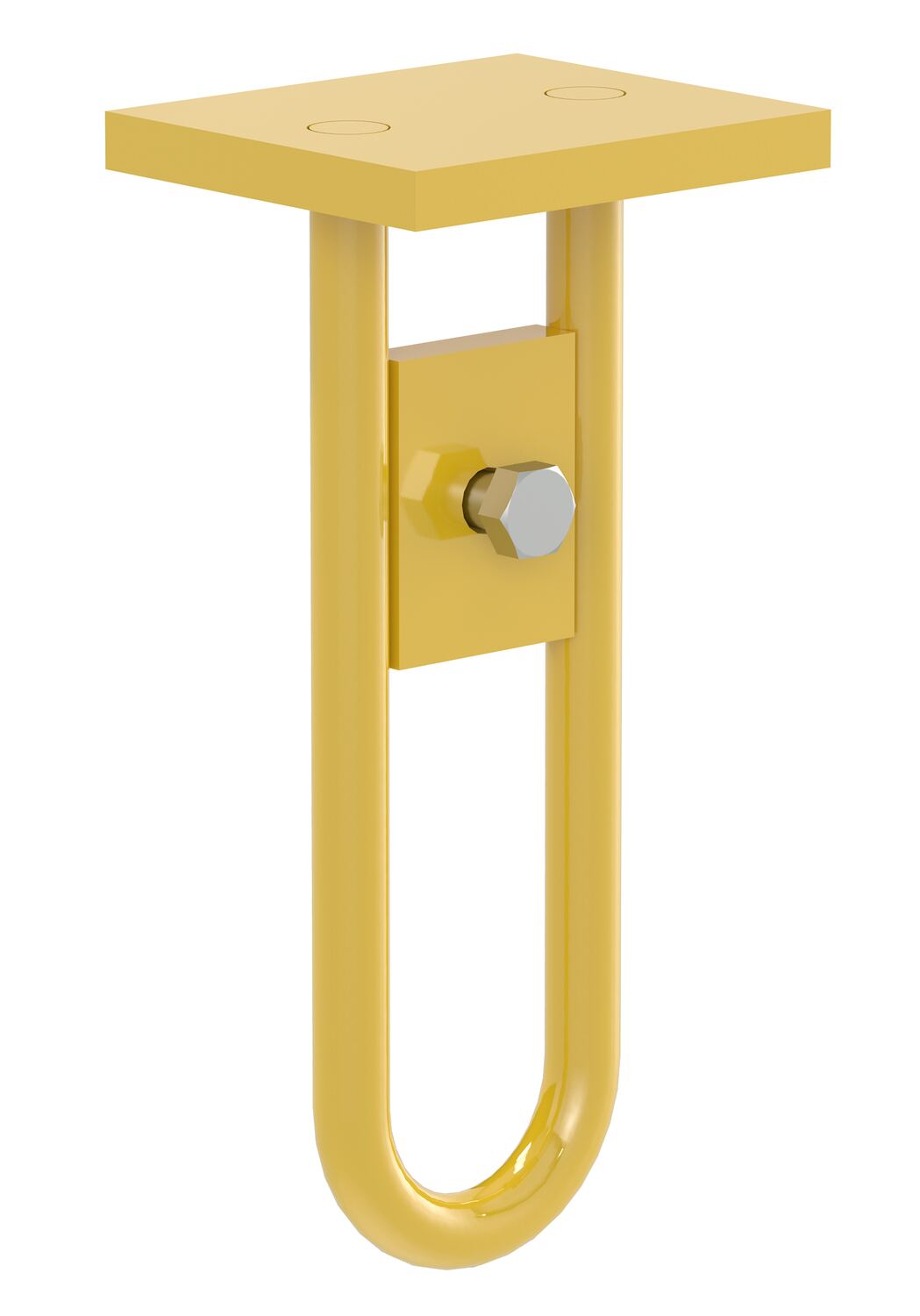

SM-LB-BFB-100 SM-LB-BFB-100 Steel Lower Bail Kit For Adjustable Spreader Beams SBM-BFB-1… 90 Days Limited Warranty NEW 22

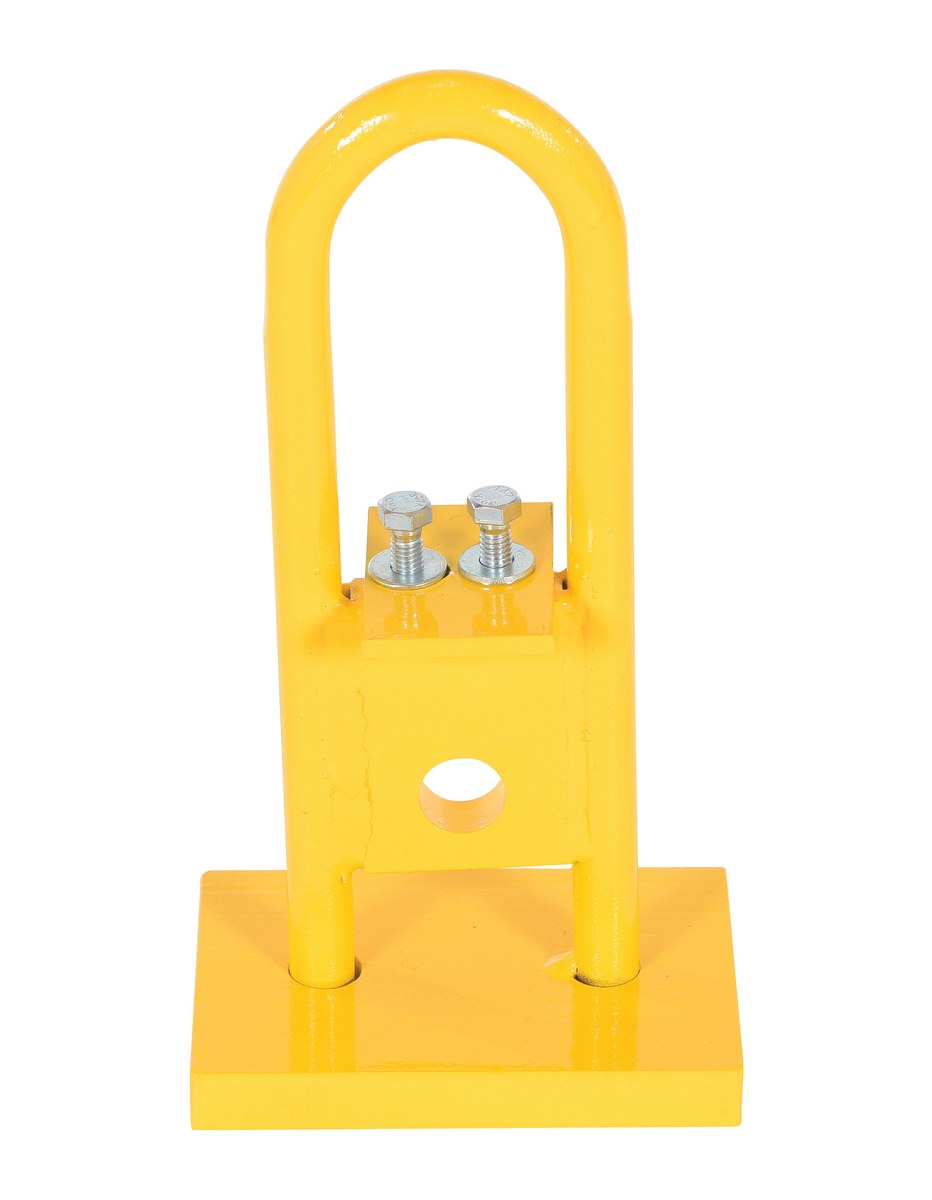

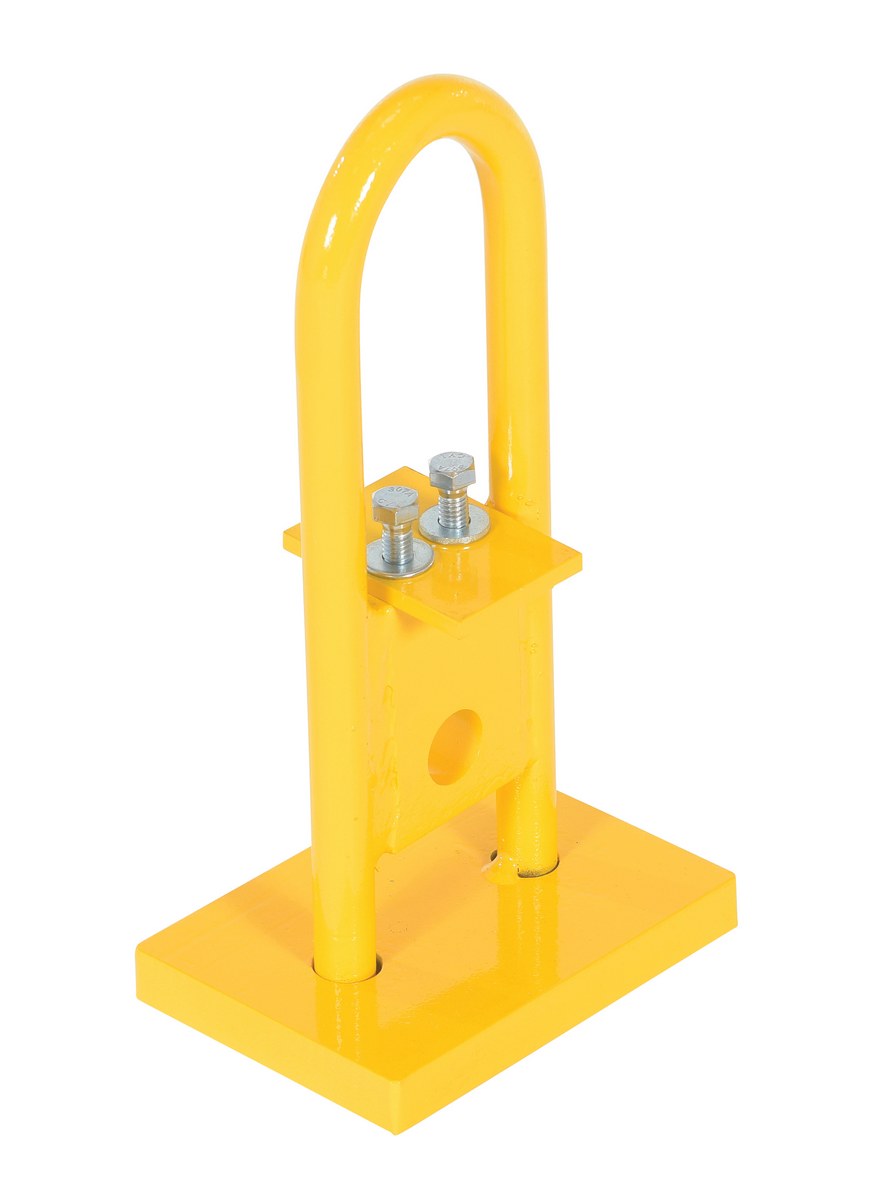

SM-UB-25 SM-UB-25 Steel Upper Bail 4-1/2 In. x 6-1/4 In. x 12 In. For Adjustab… 90 Days Limited Warranty 11

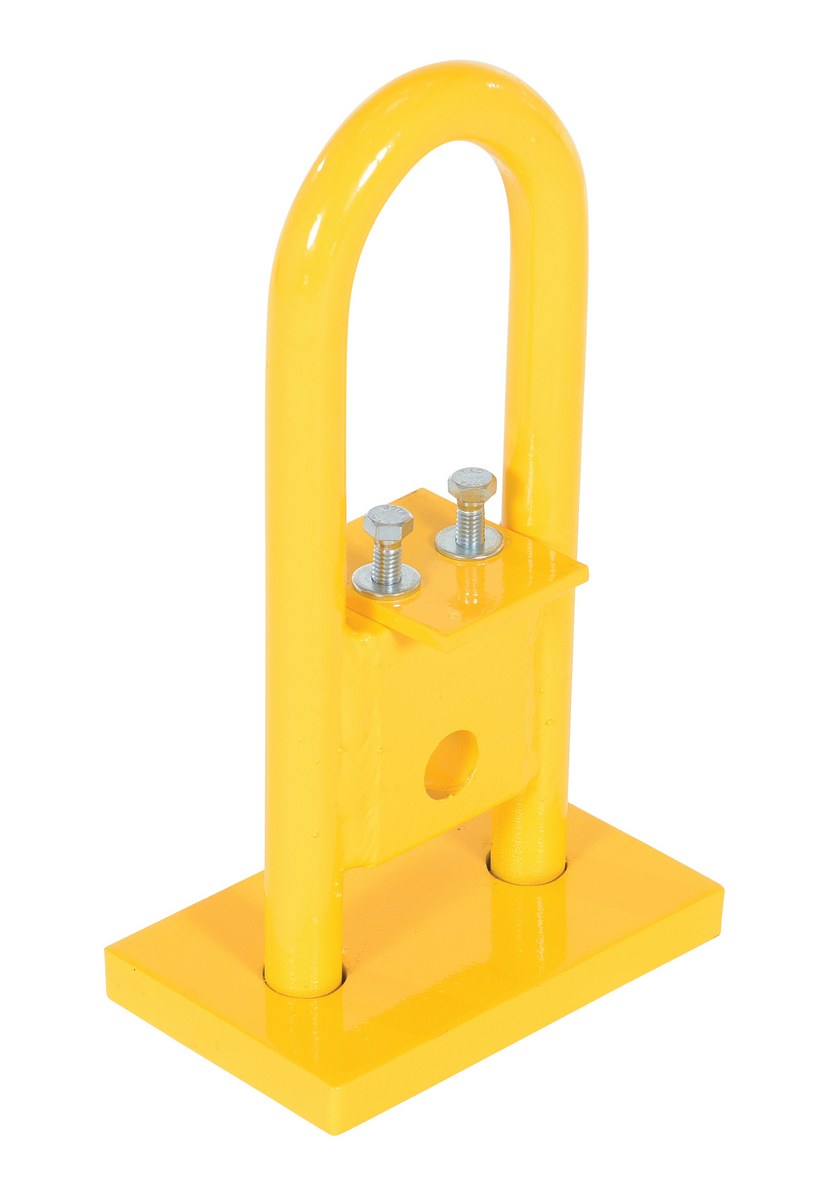

SM-UB-40 SM-UB-40 Steel Upper Bail 4-1/2 In. x 7 In. x 12-3/4 In. For Adjustab… 90 Days Limited Warranty 17

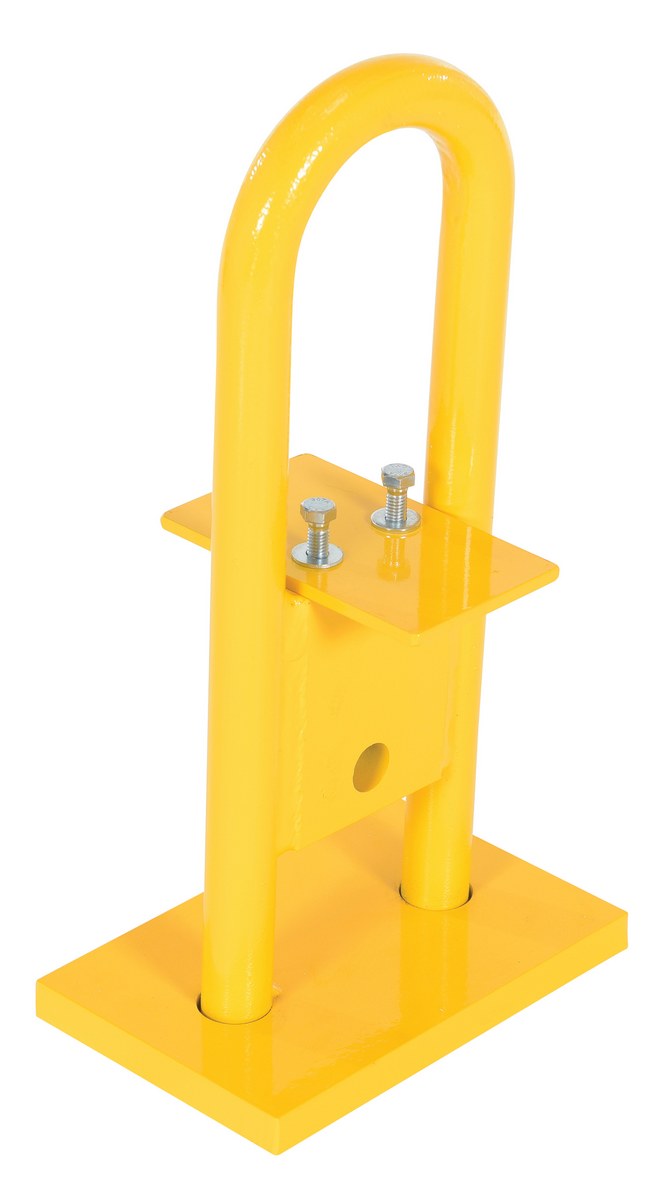

SM-UB-80 SM-UB-80 Steel Upper Bail 6 In. x 9-1/4 In. x 17-3/4 In. For Adjustab… 90 Days Limited Warranty 33

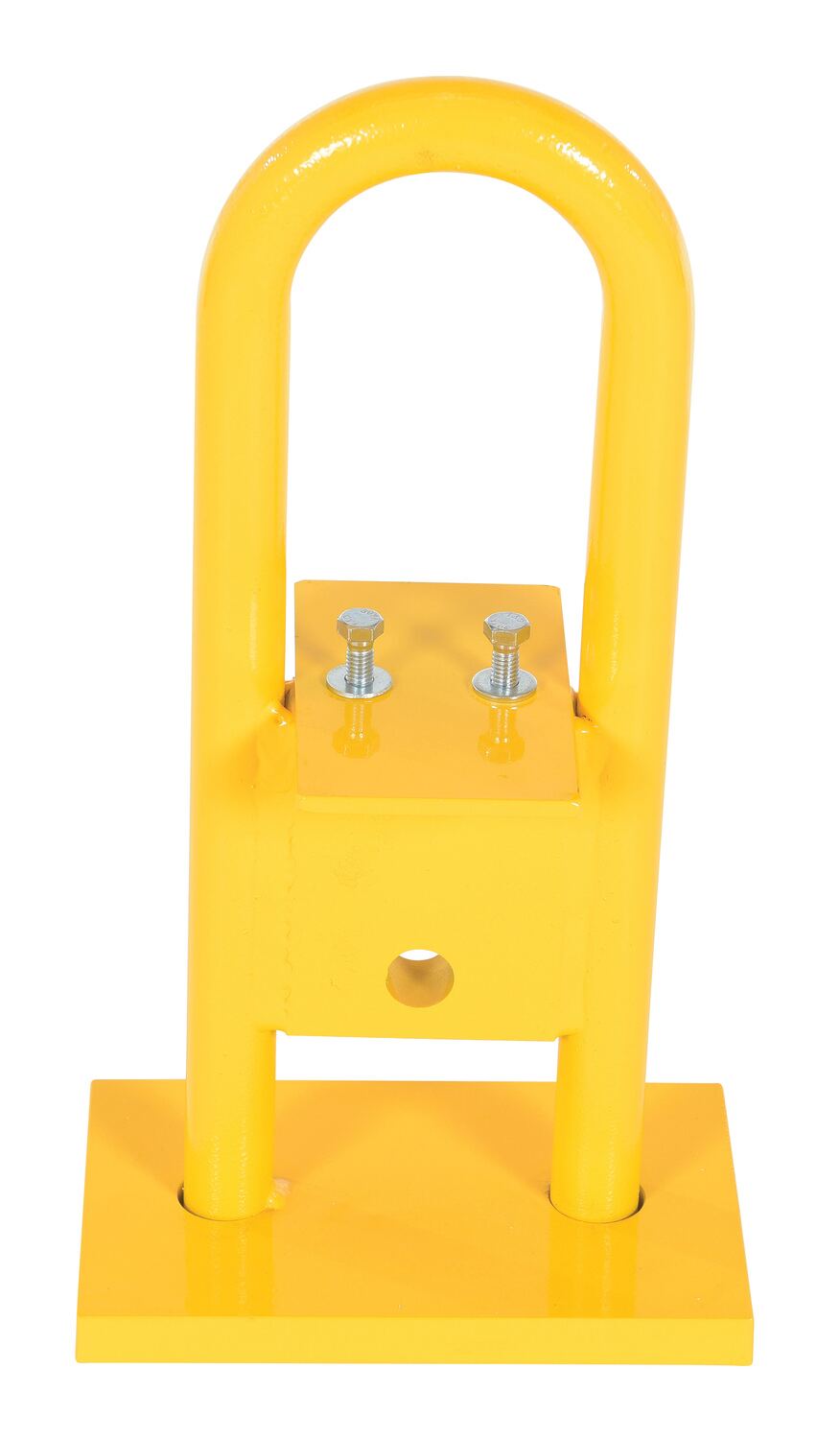

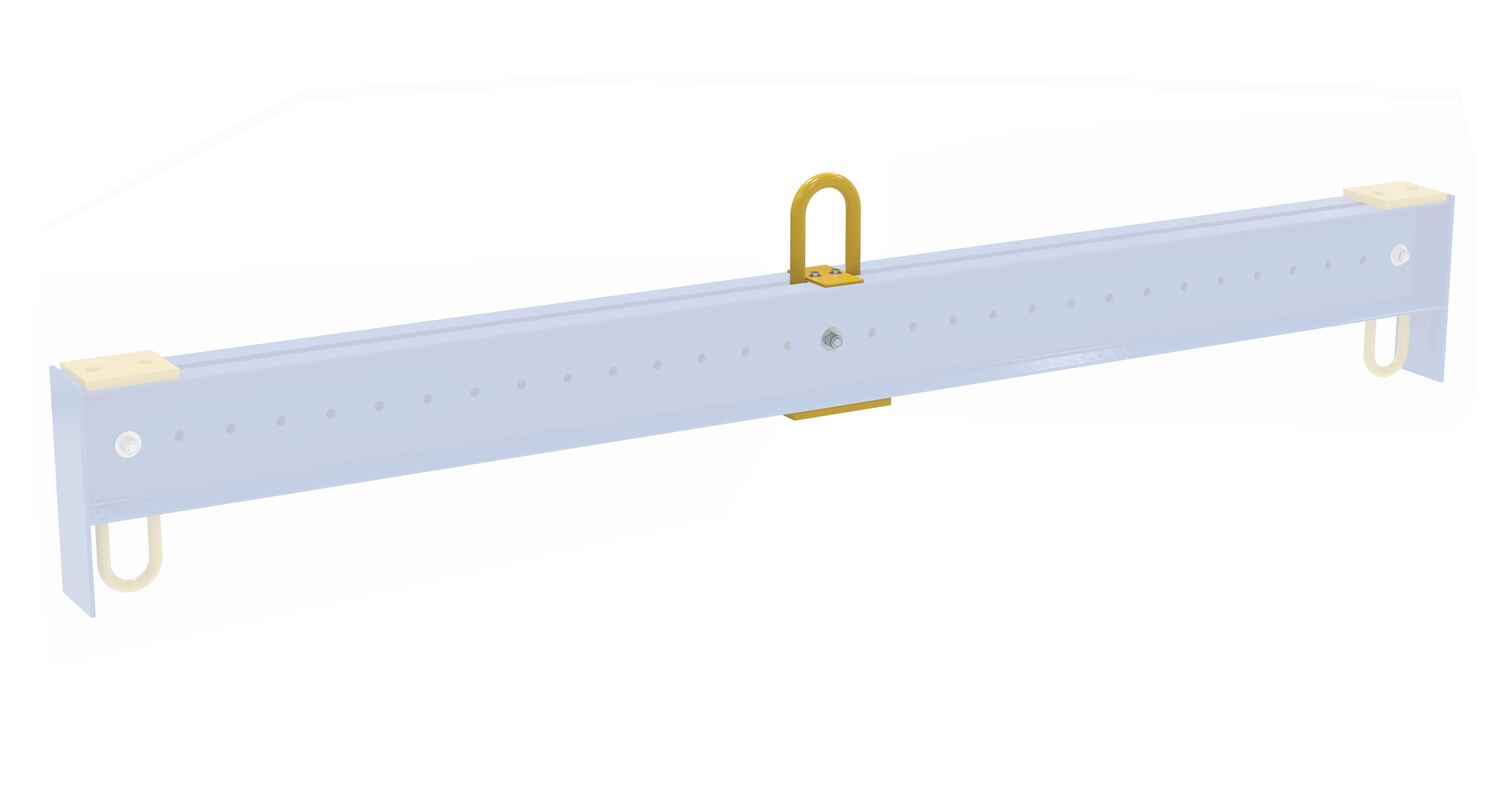

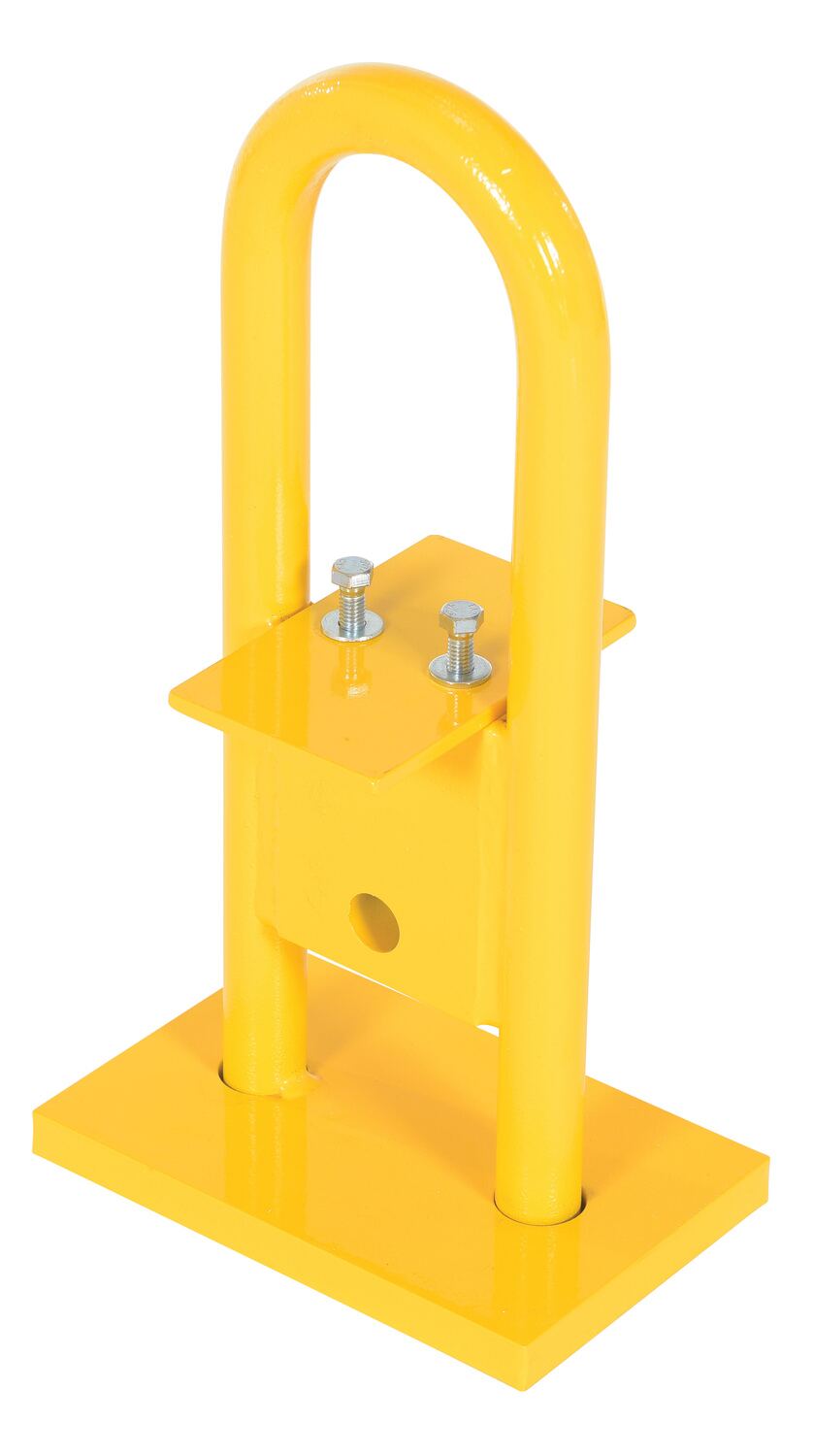

SM-UB-BFB-100 SM-UB-BFB-100 Steel Upper Bail Kit For Adjustable Spreader Beams SBM-BFB-1… 90 Days Limited Warranty NEW 38

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
SBM, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

13
SBM-25
Open Drawing
SBM-40
Open Drawing
SBM-80
Open Drawing
SBM-BFB-100-10
Open Drawing
SBM-BFB-100-6
Open Drawing
SM-LB-25
Open Drawing
SM-LB-40
Open Drawing
SM-LB-80
Open Drawing
SM-LB-BFB-100
Open Drawing
SM-UB-25
Open Drawing
SM-UB-40
Open Drawing
SM-UB-80
Open Drawing
SM-UB-BFB-100
Open Drawing

Testing Certificates

13
SBM-25
Open Certificate
SBM-40
Open Certificate
SBM-80
Open Certificate
SBM-BFB-100-10
Open Certificate
SBM-BFB-100-6
Open Certificate
SM-LB-25
Open Certificate
SM-LB-40
Open Certificate
SM-LB-80
Open Certificate
SM-LB-BFB-100
Open Certificate
SM-UB-25
Open Certificate
SM-UB-40
Open Certificate
SM-UB-80
Open Certificate
SM-UB-BFB-100
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

SBM-40

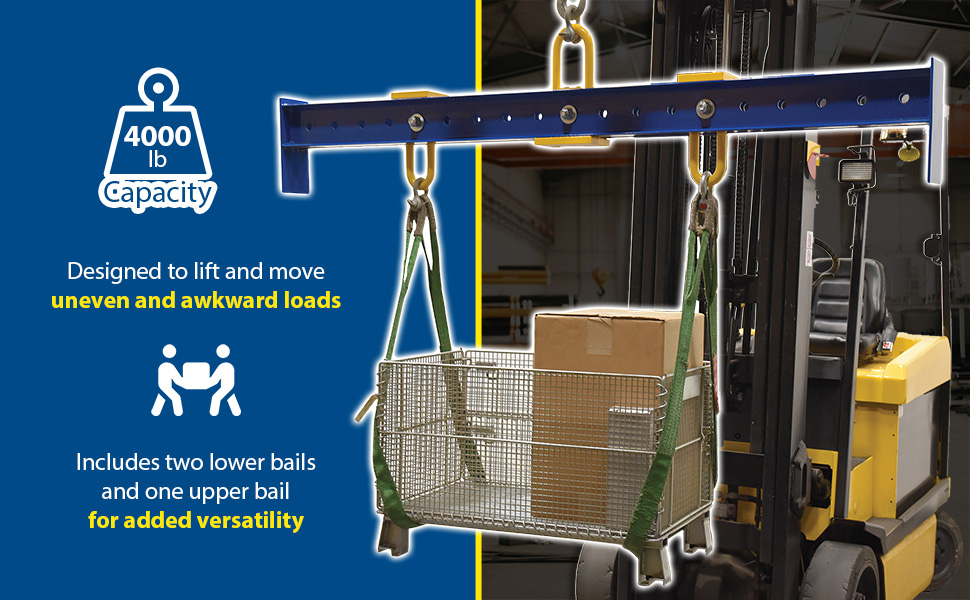

SBM-40 SBM-40 A+ Content - 3
SBM-40 SBM-40 A+ Content - 2
SBM-40 SBM-40 A+ Content - 1
SBM-BFB-100-10

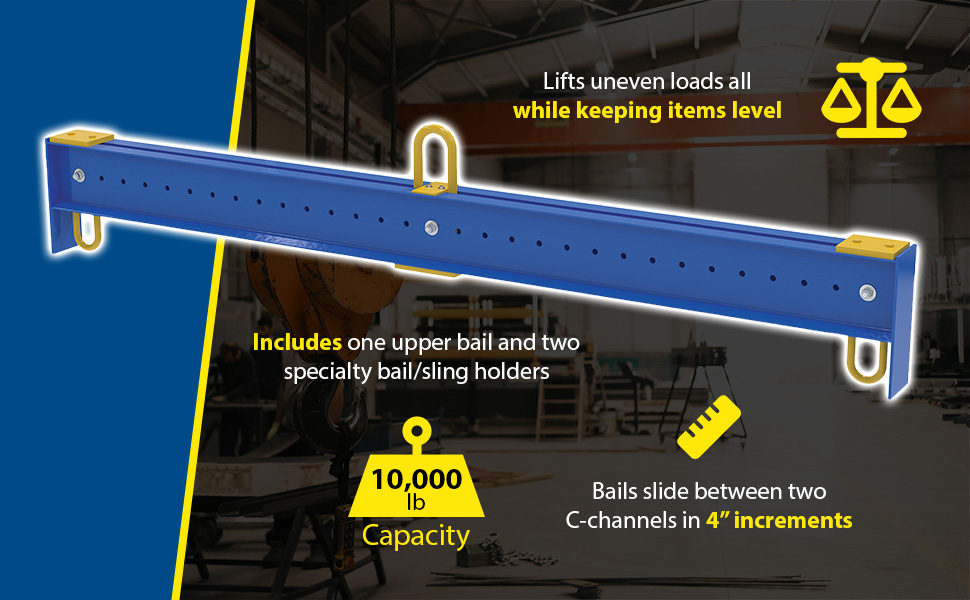

SBM-BFB-100-10 SBM-BFB-100-10 - A+ Content 1
SBM-BFB-100-10 SBM-BFB-100-10 - A+ Content 3
SBM-BFB-100-10 SBM-BFB-100-10 - A+ Content 2
SBM-BFB-100-6

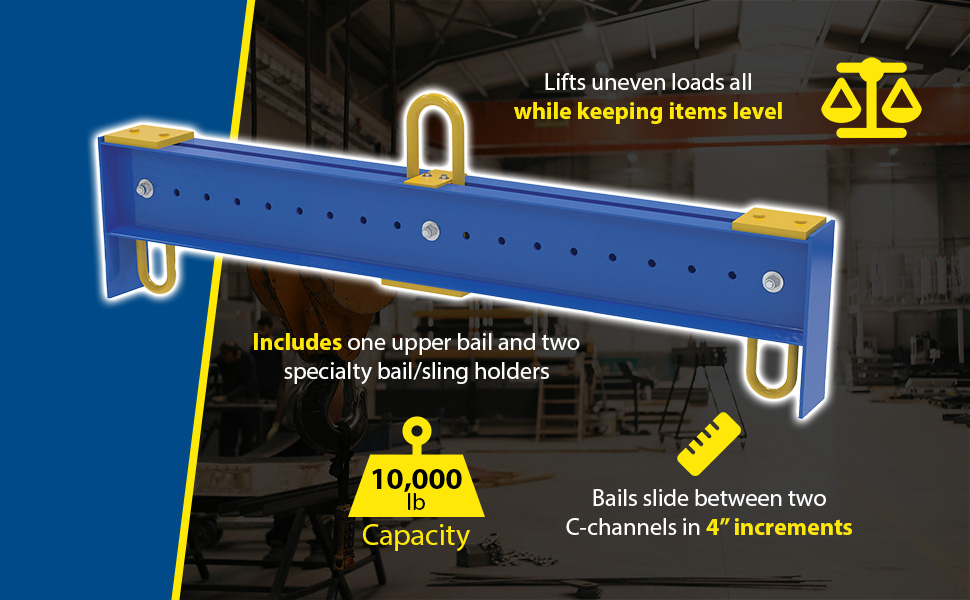

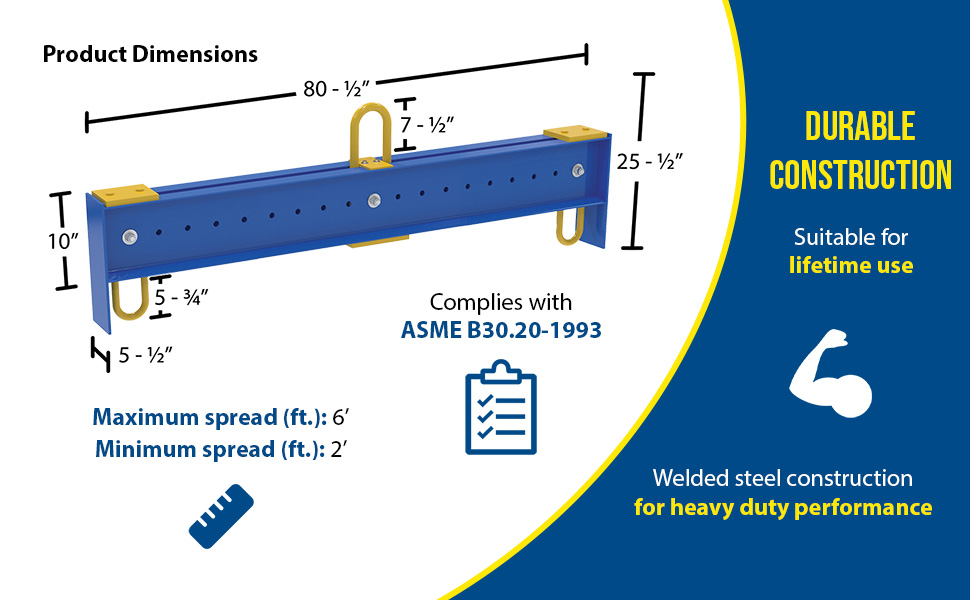

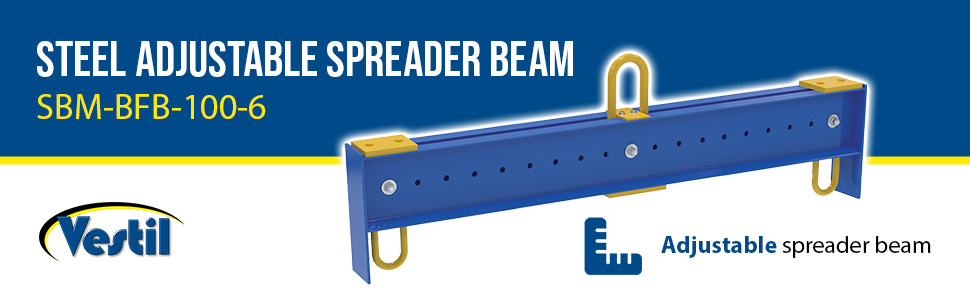

SBM-BFB-100-6 SBM-BFB-100-6 - A+ Content 1
SBM-BFB-100-6 SBM-BFB-100-6 - A+ Content 3
SBM-BFB-100-6 SBM-BFB-100-6 - A+ Content 2

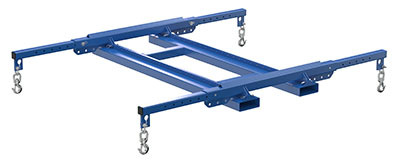

Reference #: CF-6508 4 Point Spreader Beam
 Reference #: CF-6508 4 Point Spreader Beam
Reference #: CF-6508 4 Point Spreader Beam
Special 4 Point Forklift Spreader Beam
For more Specialty Designs similar to these... Click Here

Related or Similar Products:

More From Spreader Beams





Adjustable Spreader Beams




Adjustable Lifting Spreader Beams for Balanced and Uneven Load Handling

Adjustable Spreader Beams provide a versatile lifting solution for safely handling loads with varying dimensions, weight distributions, and lifting points. Designed to keep loads level during lifting operations, these heavy-duty spreader bars are ideal for manufacturing facilities, steel fabrication shops, construction sites, warehouses, and maintenance operations. Adjustable lower bails allow operators to quickly adapt to different load configurations, improving lifting flexibility while reducing the need for multiple dedicated lifting devices.

Key Features & Benefits

Constructed from rugged structural steel with a durable baked-in powder-coated finish, these lifting beams are built for demanding industrial environments. Adjustable bails slide between heavy-duty C-channel sections and can be repositioned in 4-inch increments to accommodate a wide range of load sizes and centers of gravity. Capacities range from light-duty applications to heavy industrial lifts, making the family suitable for everything from machinery components to large fabricated assemblies. Models meet ASME B30.20 standards and include upper and lower lifting bails for secure rigging attachment and enhanced load stability.

Applications

These adjustable spreader bars are ideal for overhead crane systems, gantry cranes, hoists, and other lifting equipment where balanced load control is critical. They help reduce load shifting, minimize rigging complexity, and improve safety when lifting long, oversized, or unevenly distributed loads. Specialty models designed for sling applications further enhance flexibility when handling unique lifting challenges.

Configurations & Options

Available in multiple capacities, spread ranges, and beam lengths, the Adjustable Spreader Beam family offers solutions for a broad range of lifting requirements. Optional replacement upper and lower bails are available to support maintenance programs and maximize long-term equipment value. Their adaptable design helps distributors and end users improve lifting efficiency, workplace safety, and operational productivity.


Model # Description Attributes Net Wt.
(lbs)
SBM-25 SBM-25Steel Adjustable Spreader Beam 78 In. Length 2,500 Lb. Capacity BlueUniform Capacity (lb.): 2,500
Headroom (in.): 14-3/4		178

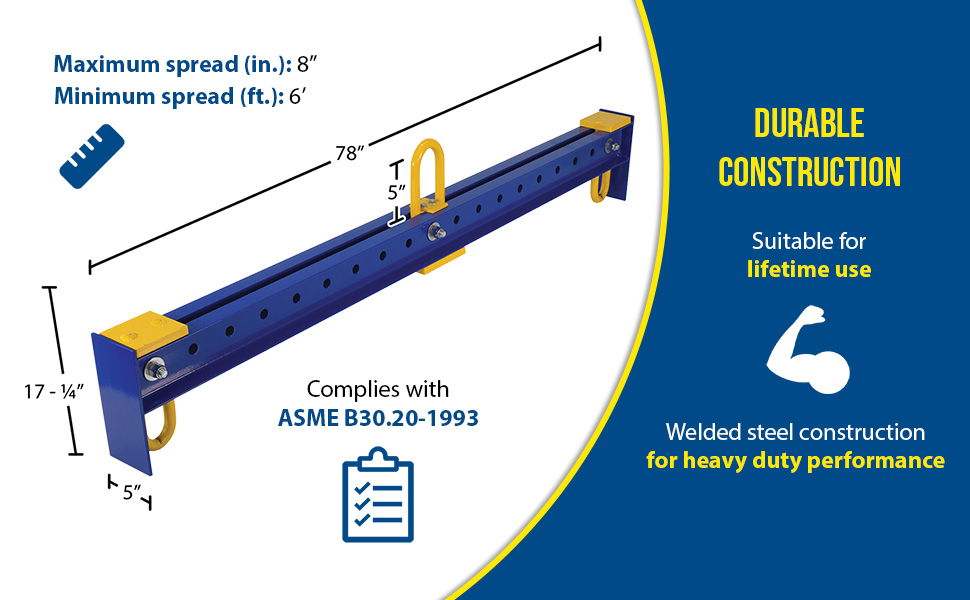

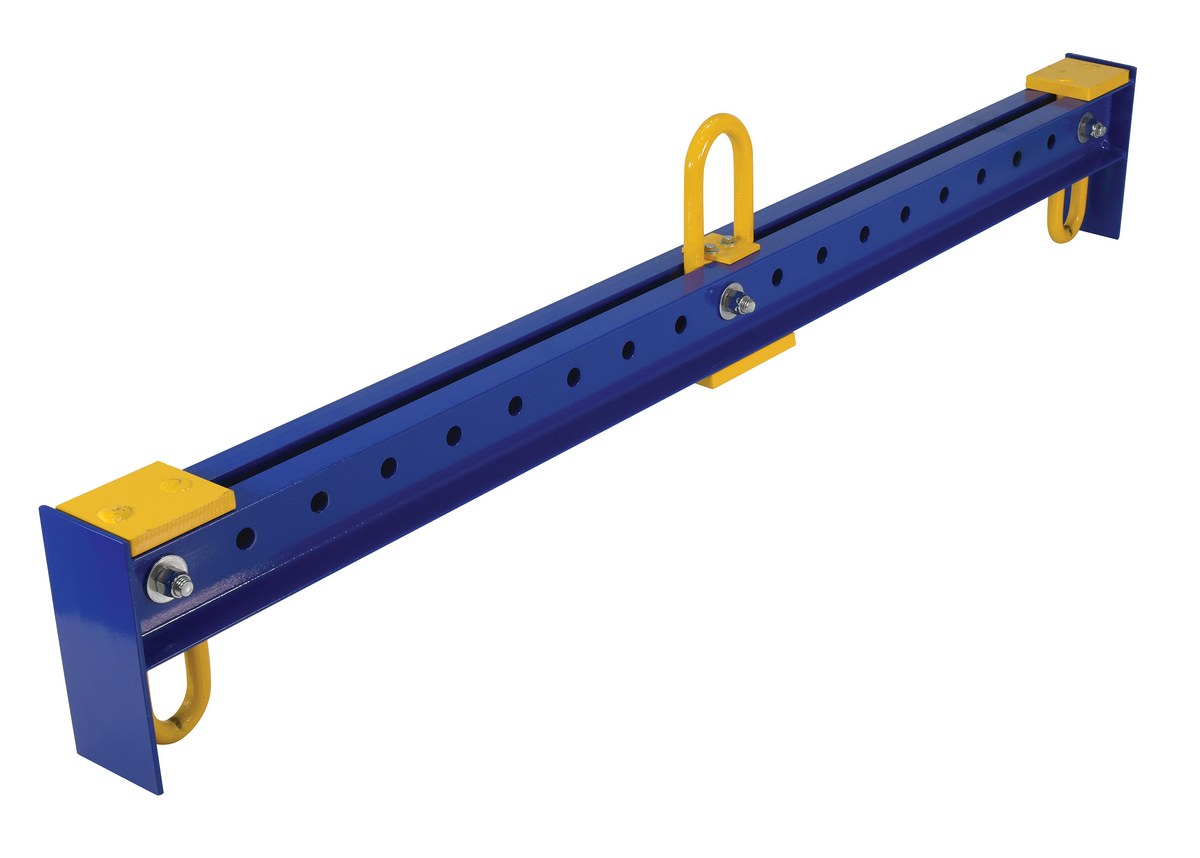

SBM-40 SBM-40Steel Adjustable Spreader Beam 78 In Length 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Headroom (in.): 14-3/4		196

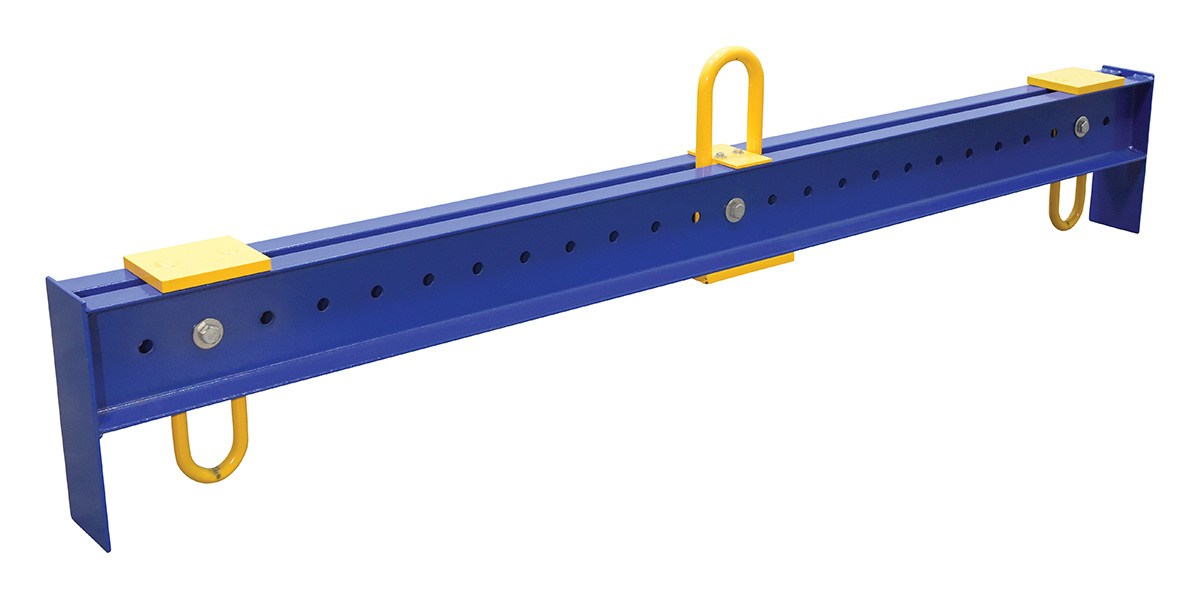

SBM-80 SBM-80Steel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Headroom (in.): 20-3/4		336

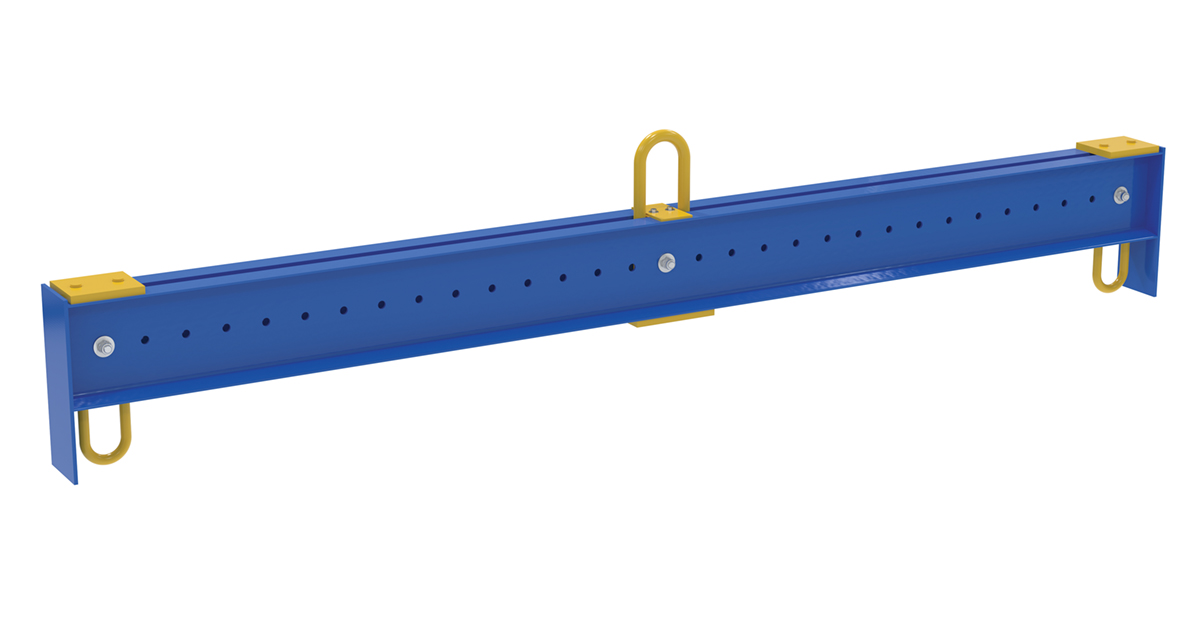

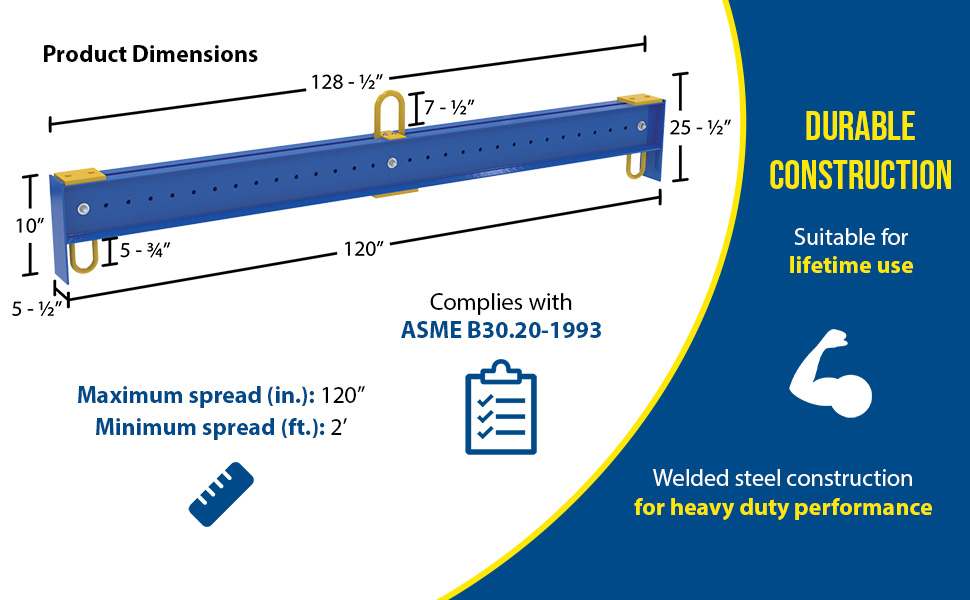

SBM-BFB-100-10 SBM-BFB-100-10Steel Adjustable Spreader Beam 128-1/2 In Length 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Lower Bail Width (in): 3		508

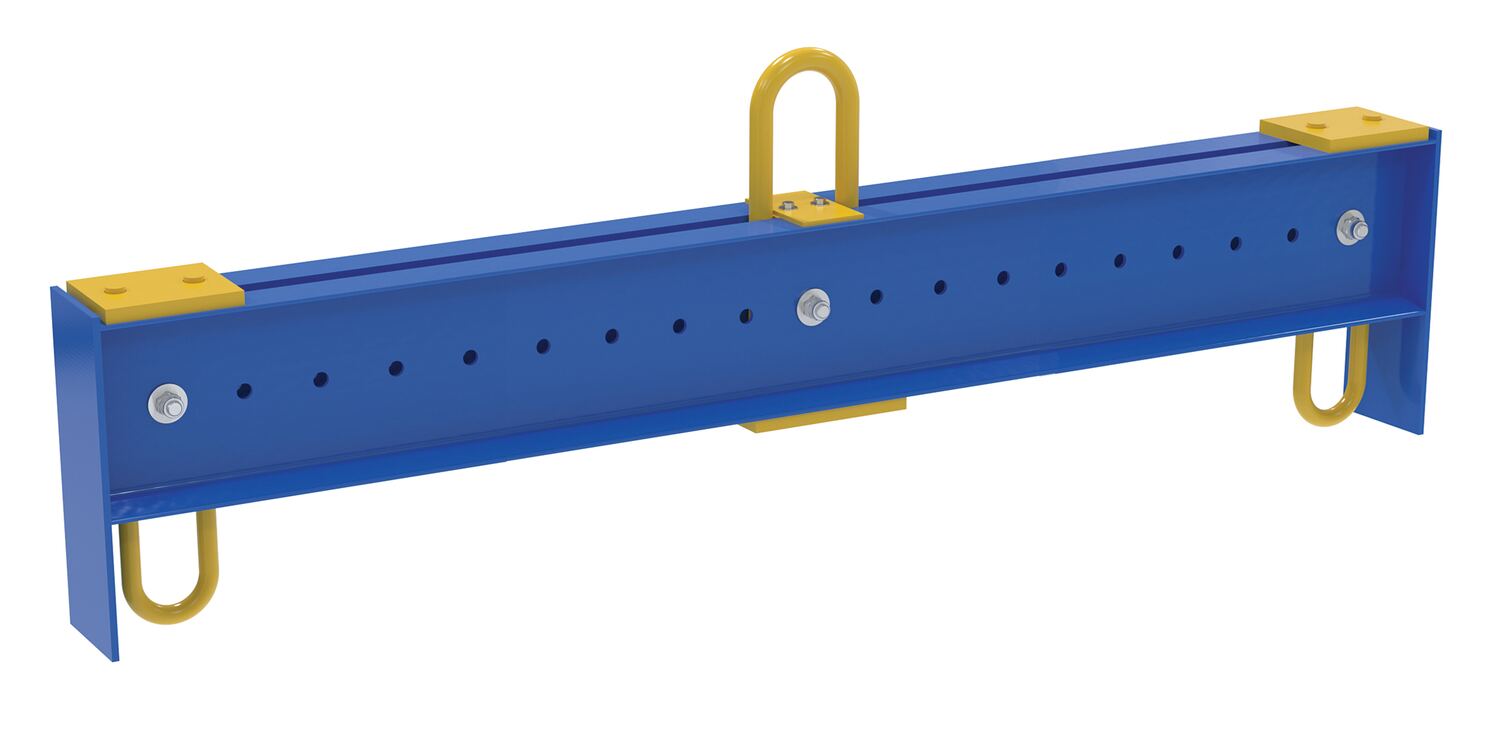

SBM-BFB-100-6 SBM-BFB-100-6Steel Adjustable Spreader Beam 6 Ft Maximum Spread 10,000 Lb. Capacity BlueUniform Capacity: 10,000
Lower Bail Width (in): 3		388
