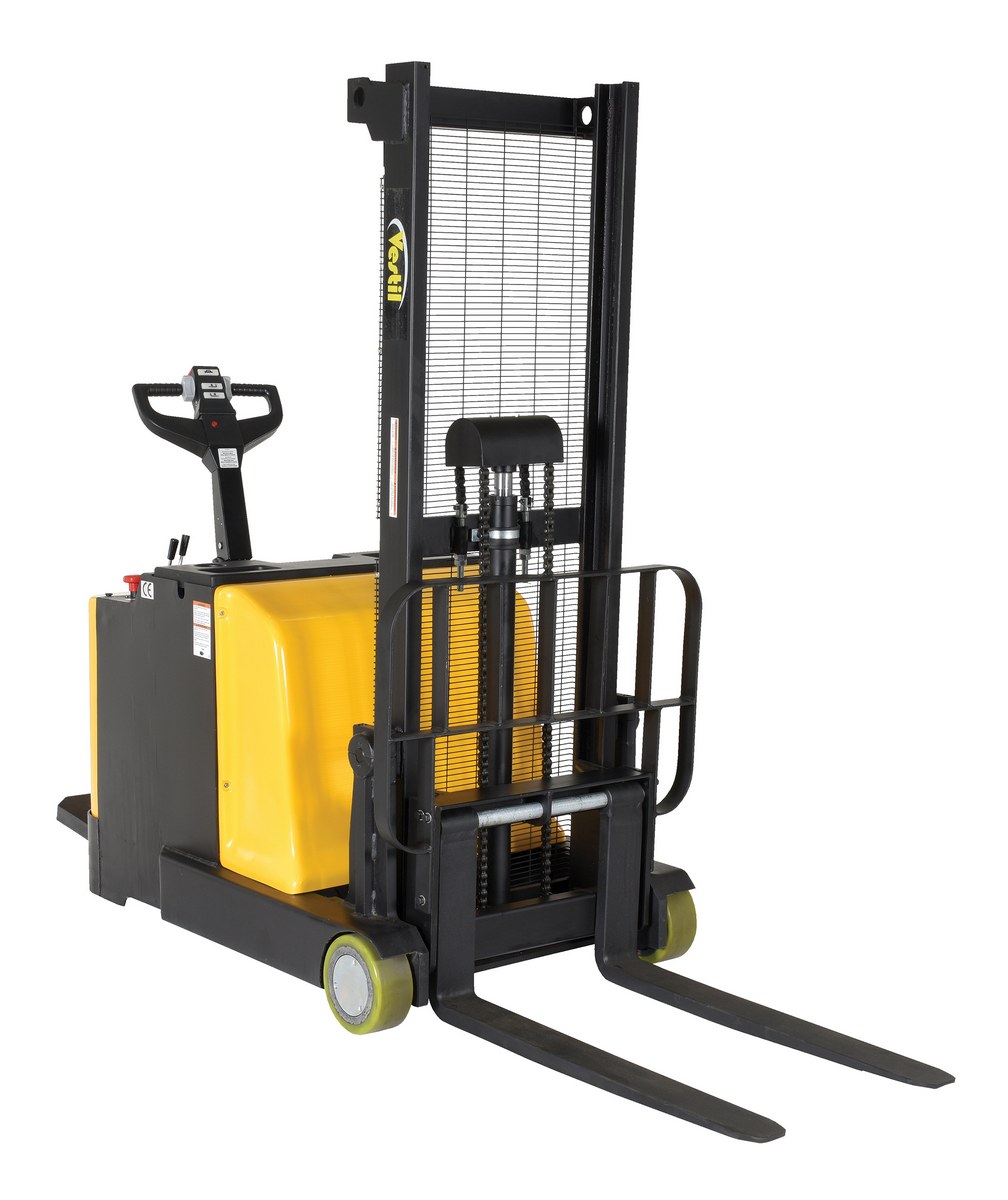

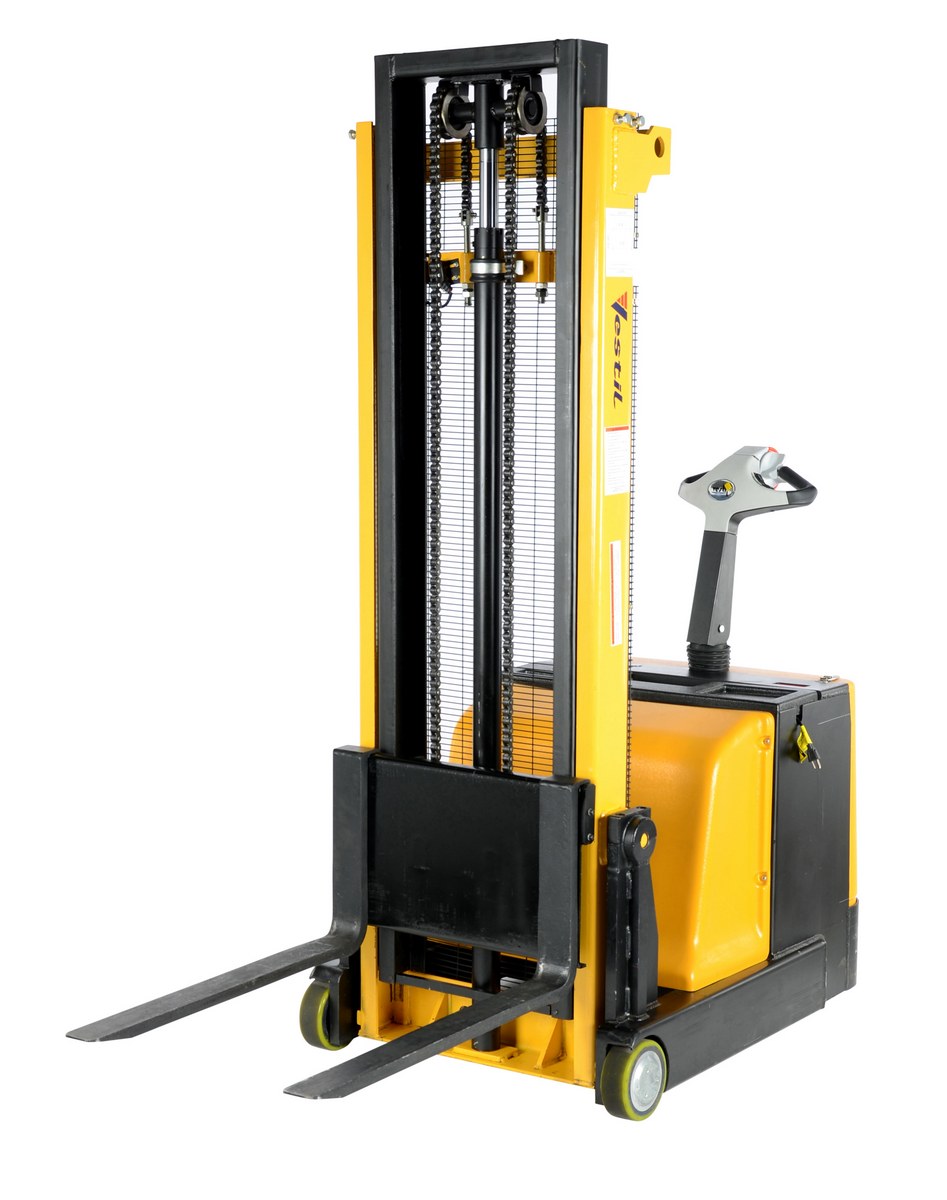

Counterbalanced Powered Stackers and Electric Drive Lift Trucks

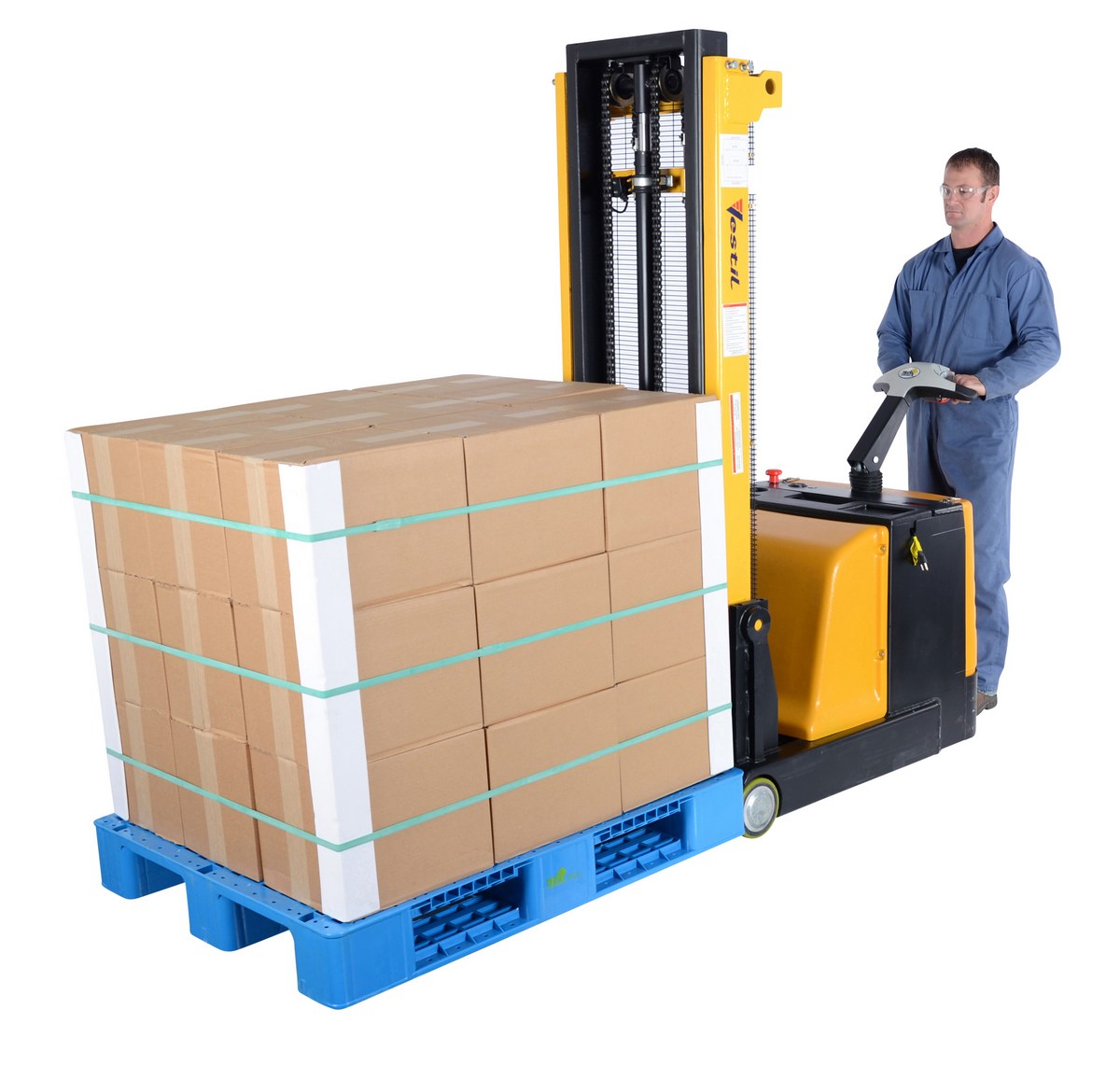

Counterbalanced Powered Drive Lifts combine the lifting capabilities of a powered stacker with the versatility needed for applications where traditional fork-over designs cannot operate. The counterbalance configuration provides unobstructed access to skids, machinery, racks, and workstations, making these electric lift trucks ideal for die handling, machine feeding, pallet positioning, and truck loading or unloading. Powered drive and lift functions reduce manual effort while improving workplace safety, productivity, and load control.
Key Features & Benefits
Equipped with high-torque DC drive and lift motors, these powered stackers deliver reliable performance for demanding industrial environments. Ergonomic controls include infinitely variable forward and reverse travel speeds, lift and lower functions, battery status monitoring, and an integrated horn. A proprietary emergency reverse belly switch, automatic electromagnetic braking system, and dead-man safety feature help protect operators during use. Adjustable forks accommodate a variety of pallet and load sizes, while the accessible battery compartment simplifies maintenance and service.
Applications

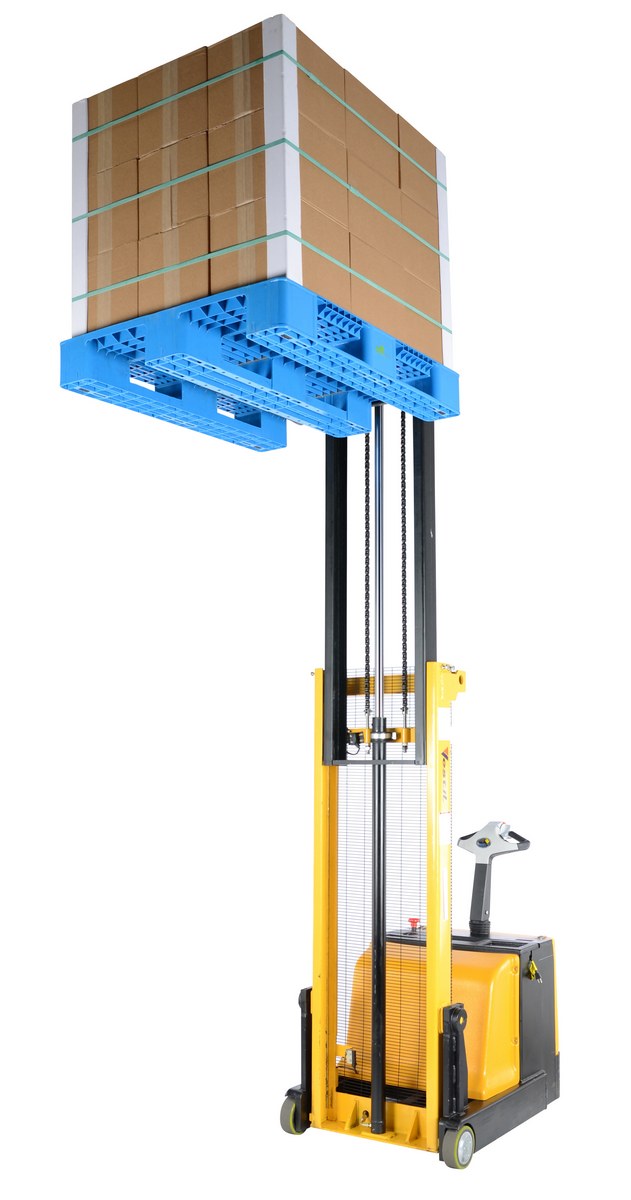

These counterbalanced electric lifts are well suited for manufacturing facilities, warehouses, distribution centers, maintenance departments, and production lines. Their open-front design allows operators to handle loads in locations where outriggers or straddle legs would interfere with equipment, pallets, containers, or machinery. Models are available with capacities up to 2,000 pounds and lifting heights reaching up to 118 inches for elevated storage and material positioning.
Configurations & Options

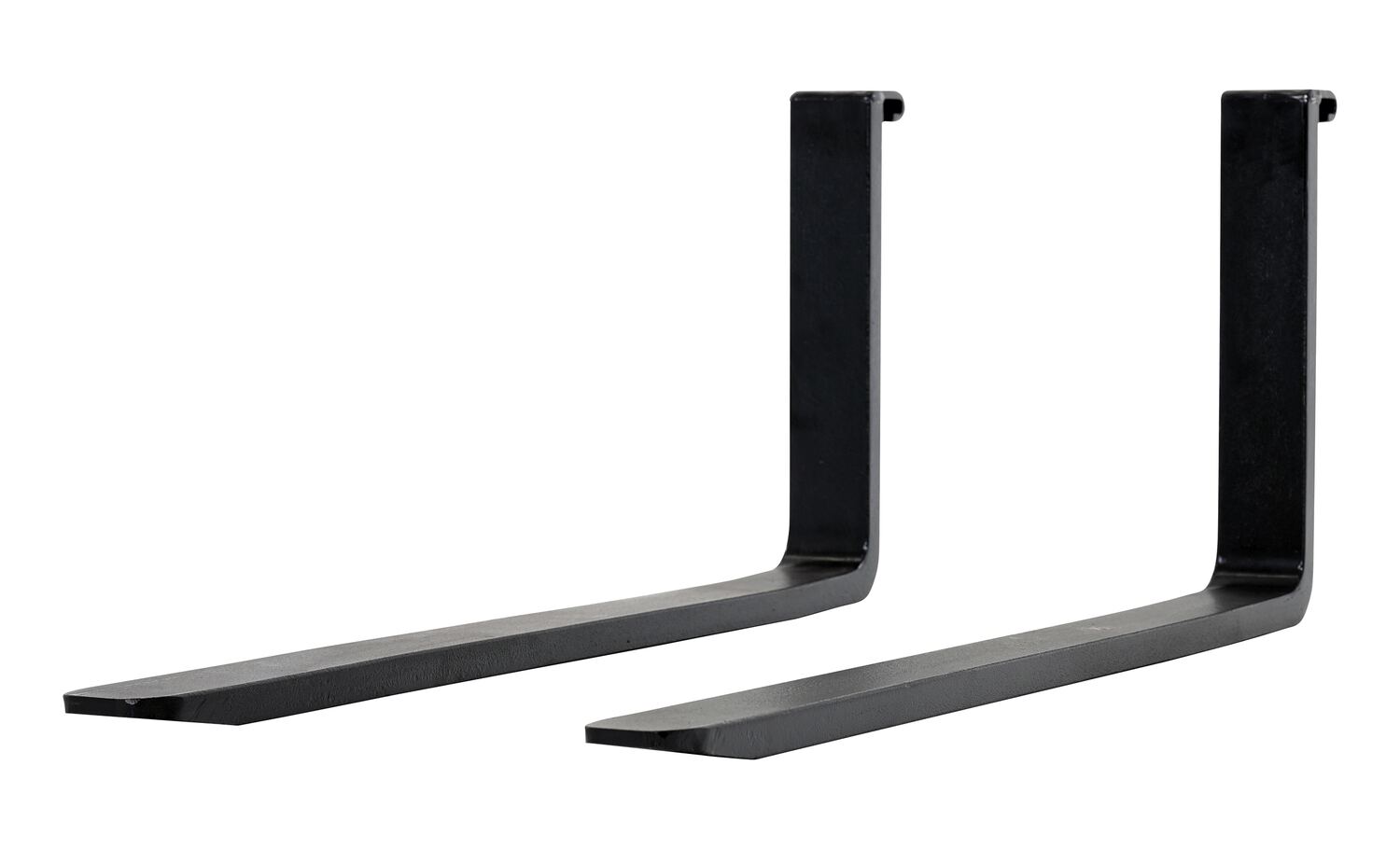

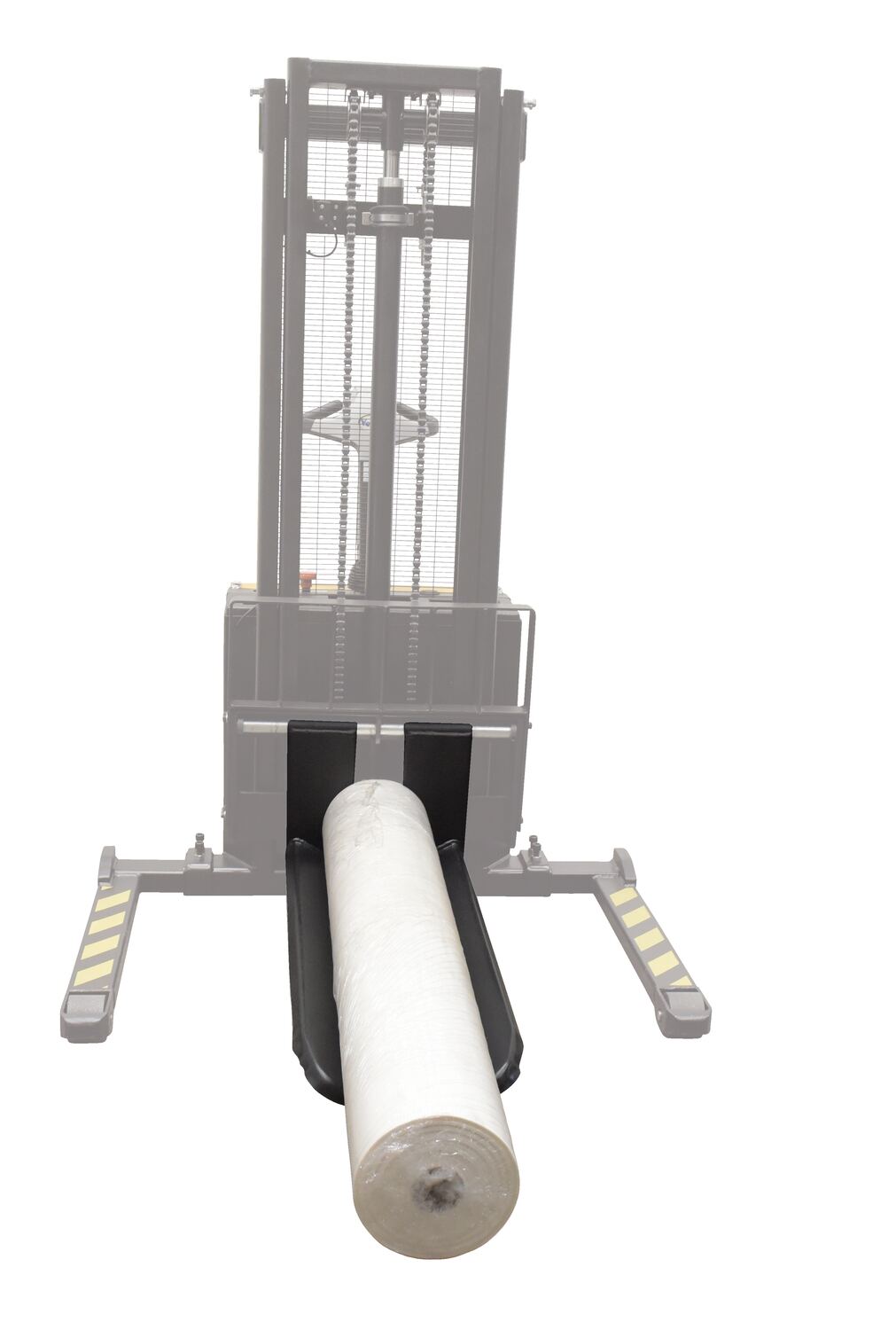

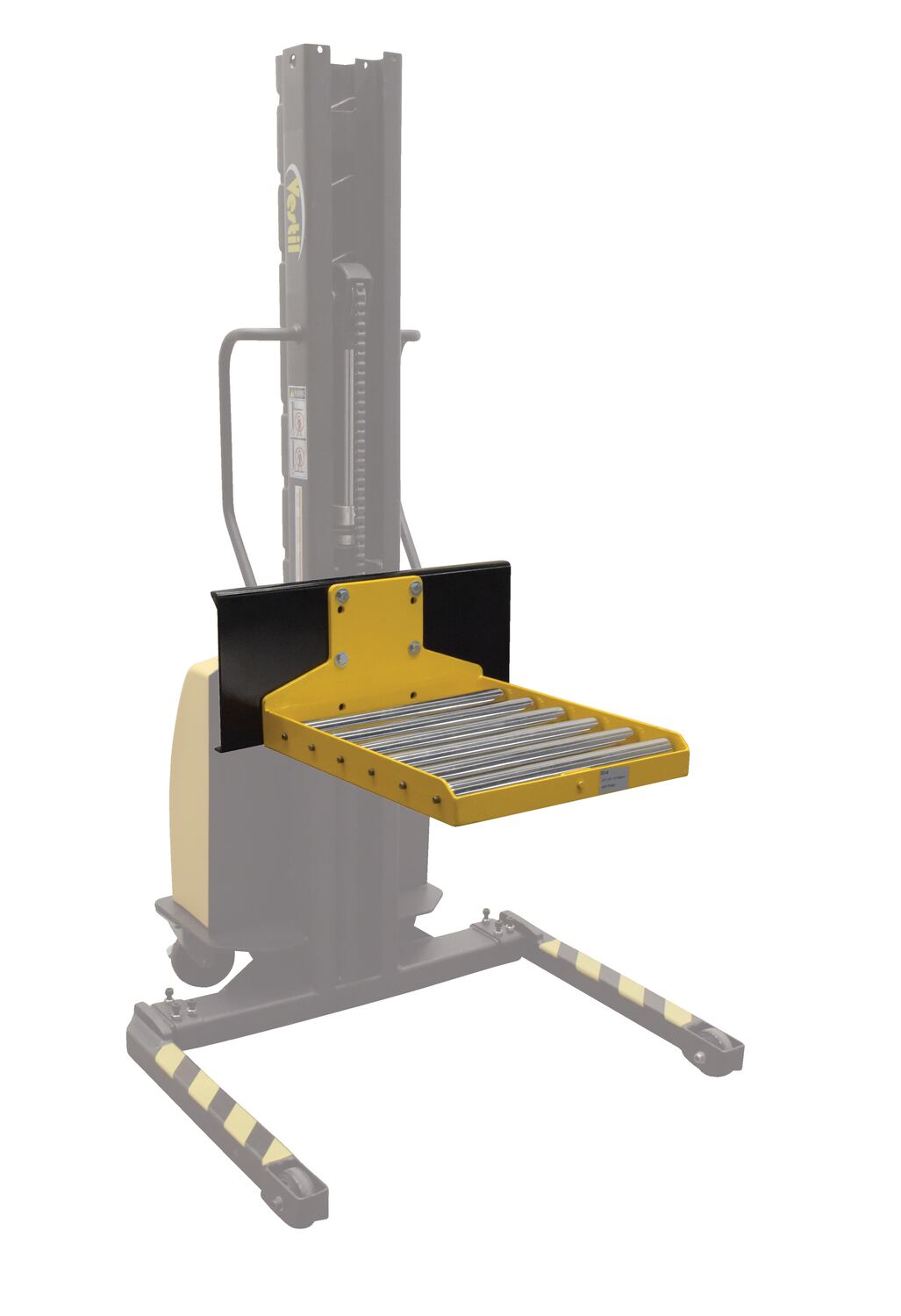

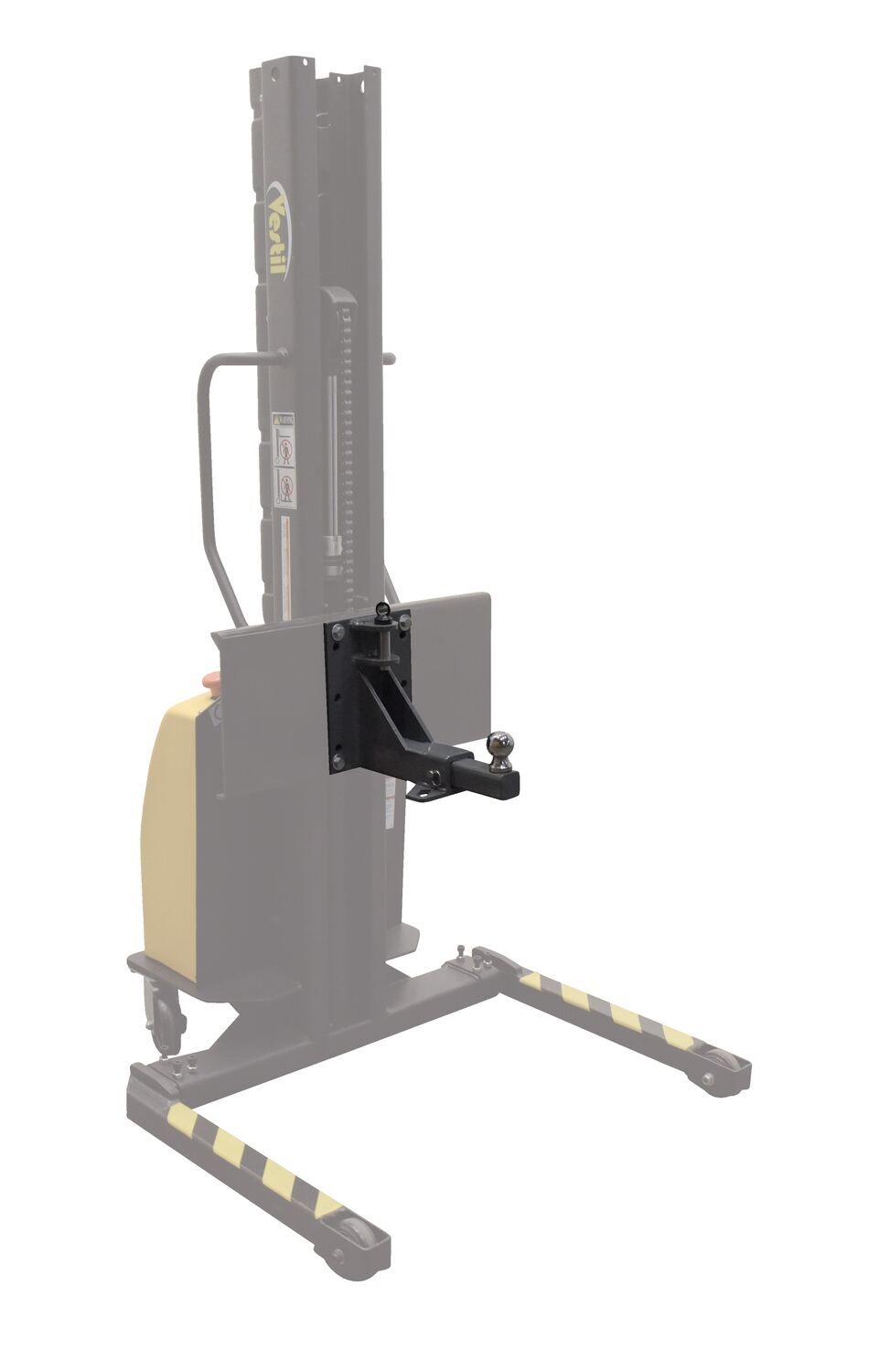

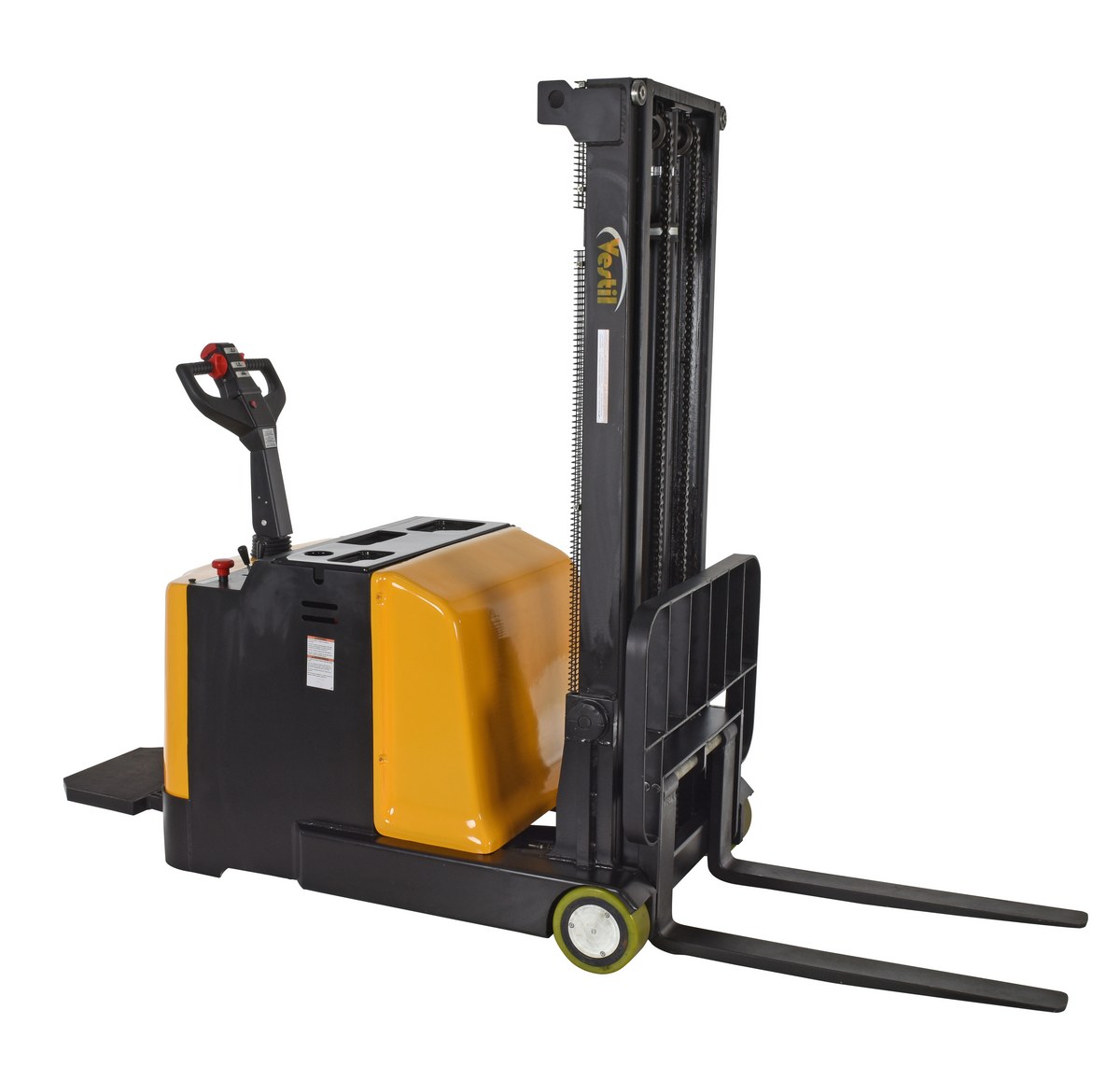

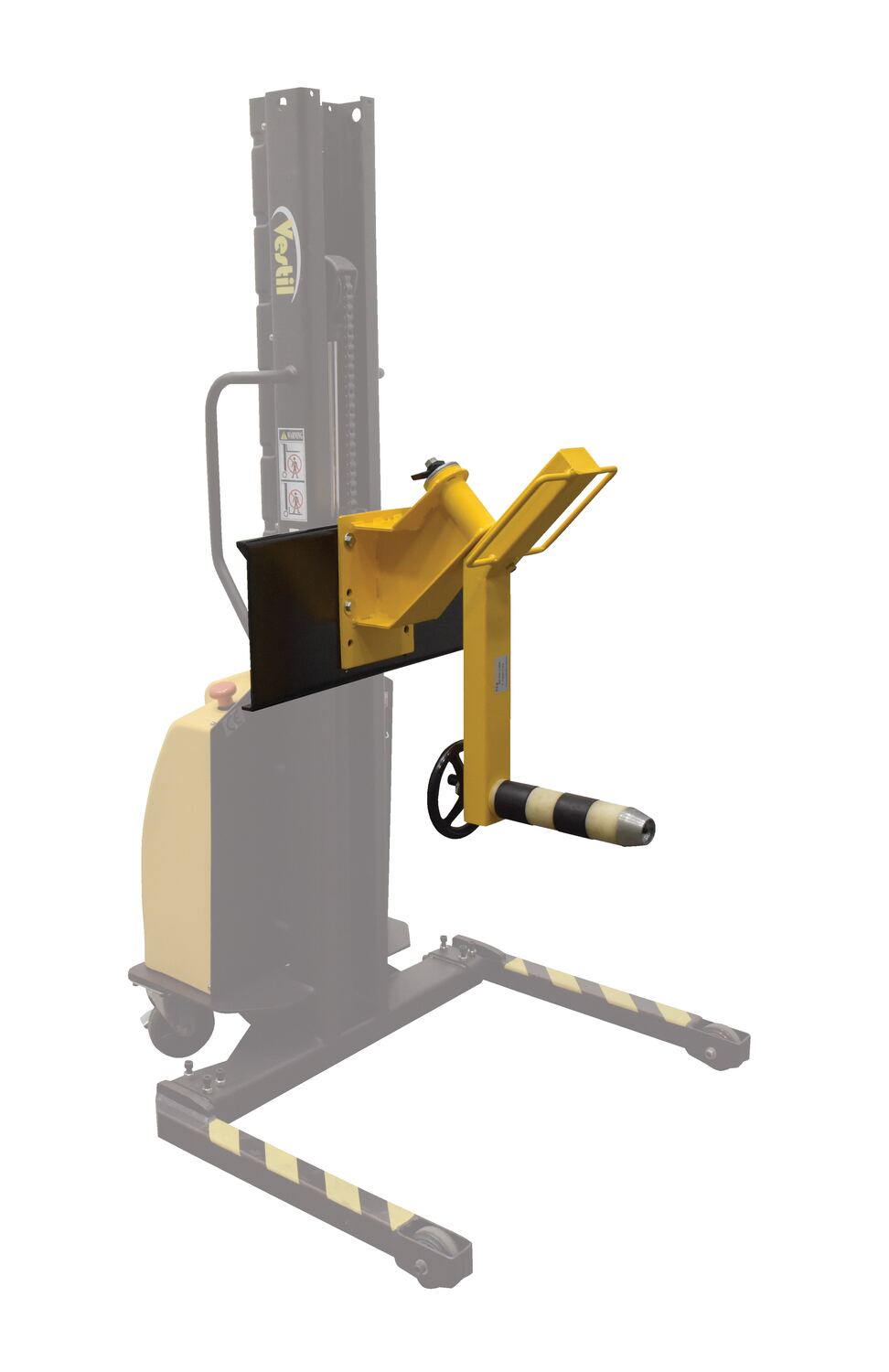

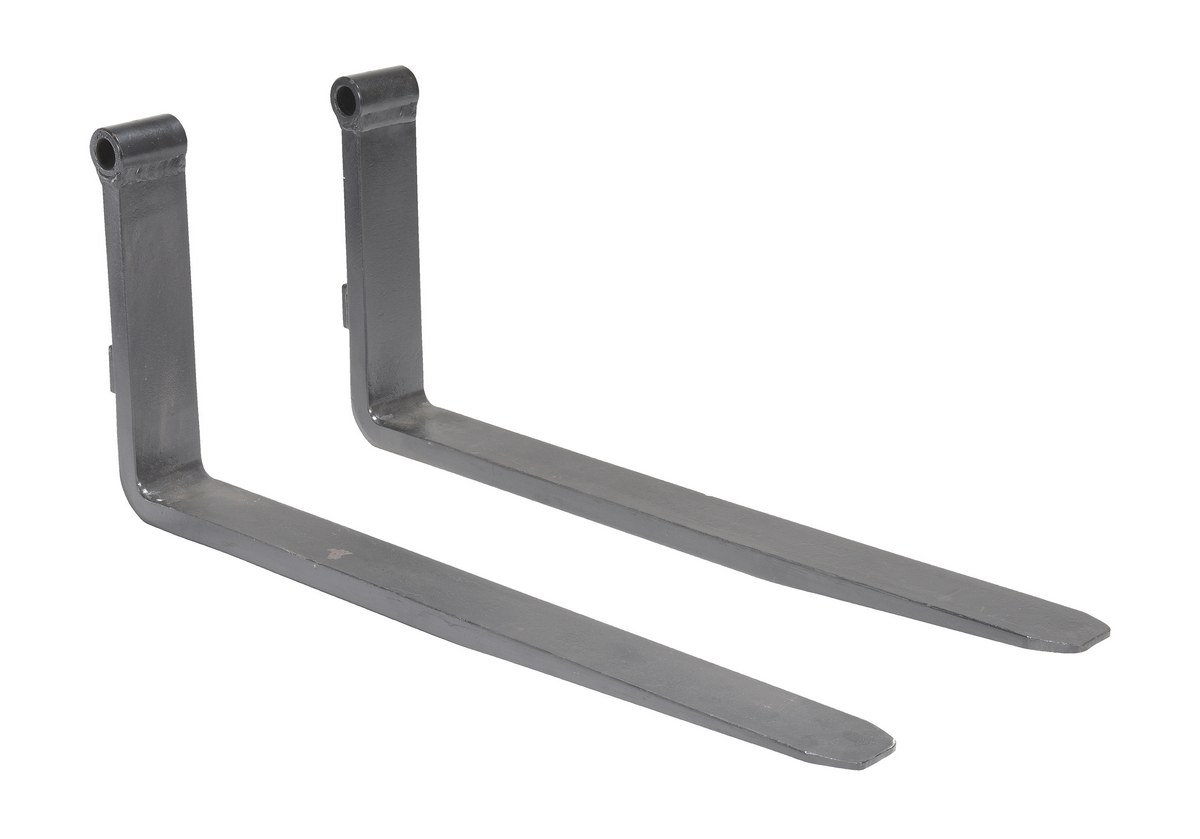

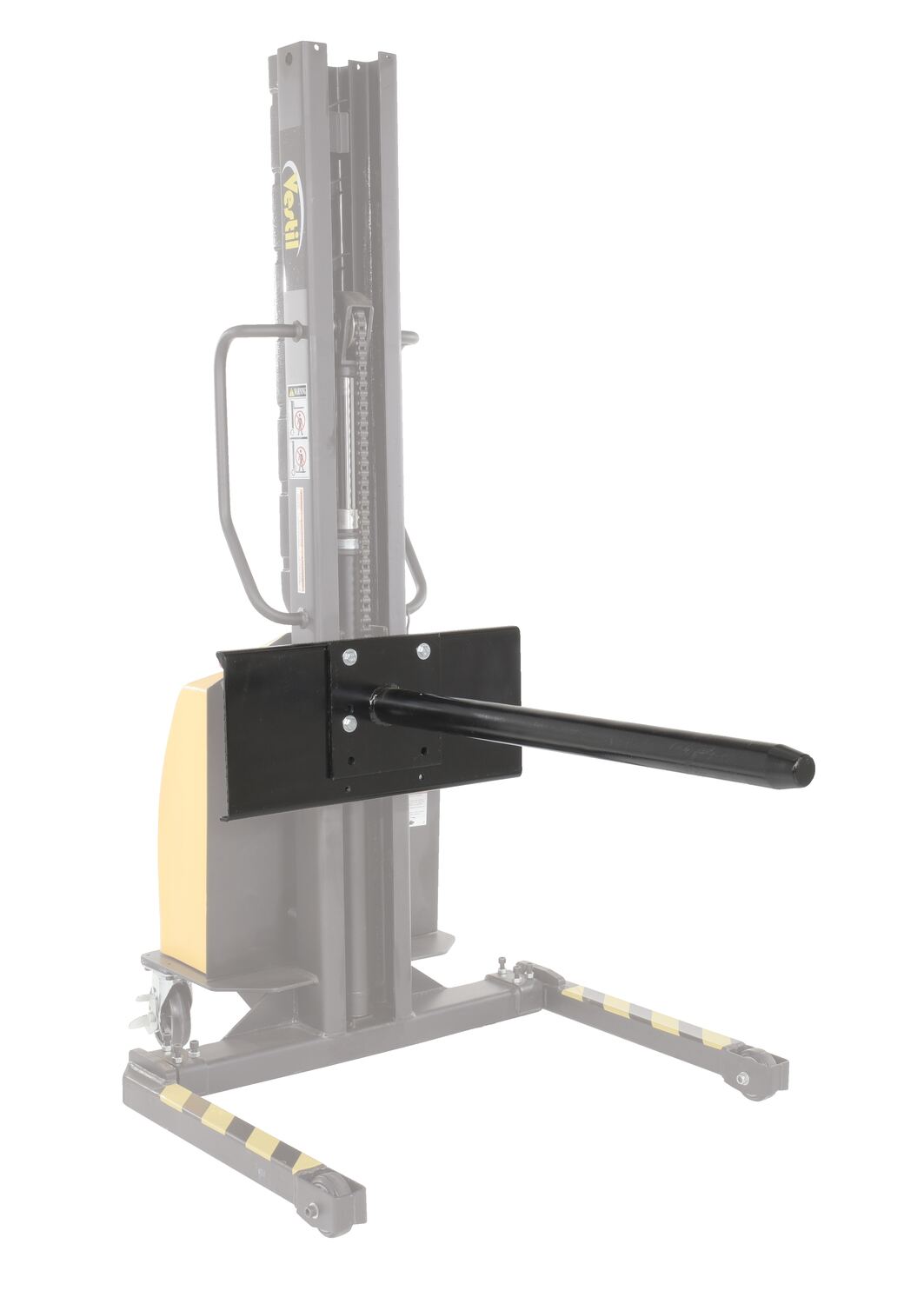

Multiple lift heights, load capacities, fork lengths, and rider platform configurations are available to match specific operational requirements. Optional attachments include reel rotators, roll and drum handling forks, roller platforms, pole attachments, ball hitch adapters, removable work platforms, and maintenance-free AGM battery upgrades. This broad range of configurations allows a single powered lift platform to support numerous material handling tasks throughout a facility. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

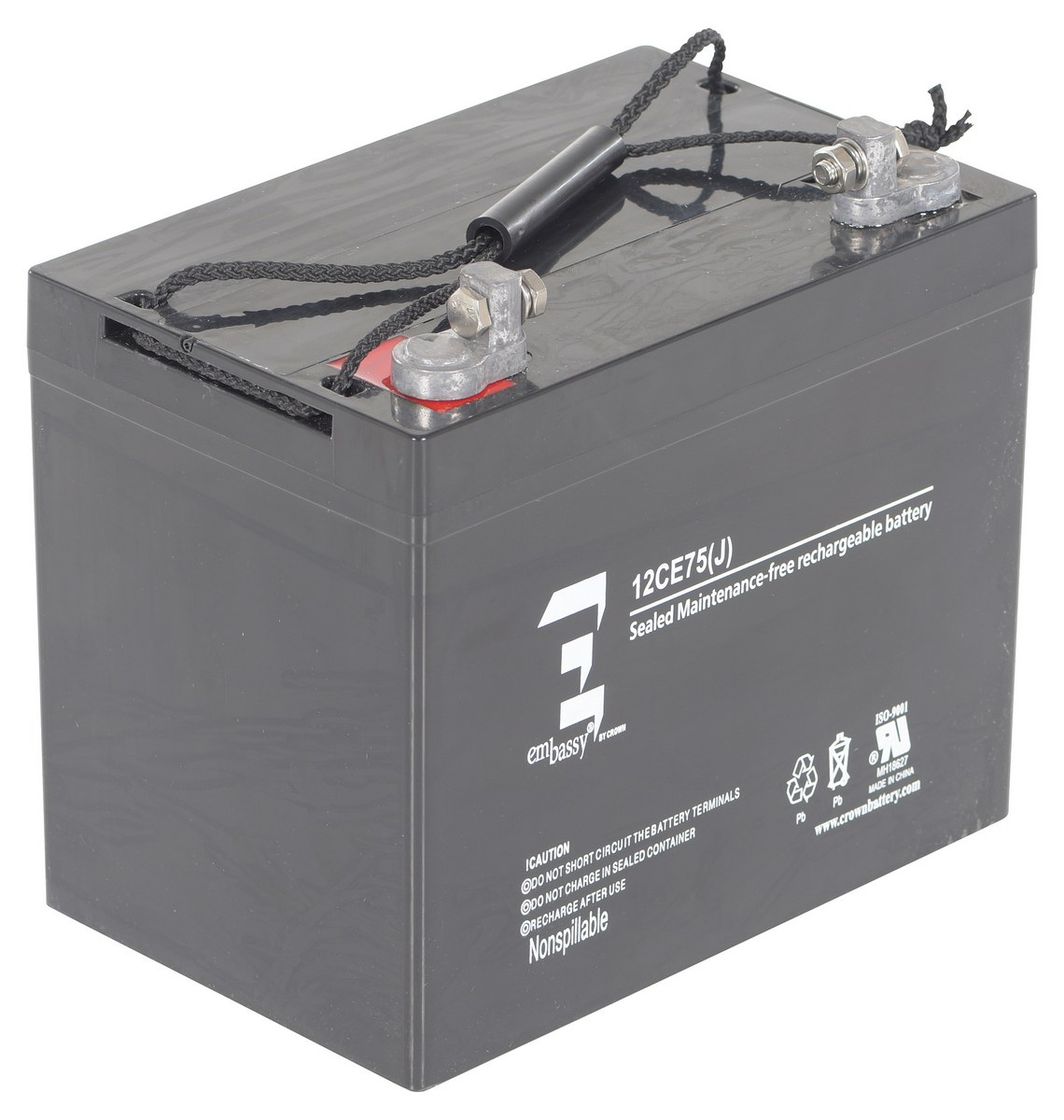

Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.
